Precision Hardware 2208CD-4908B-Hand-605

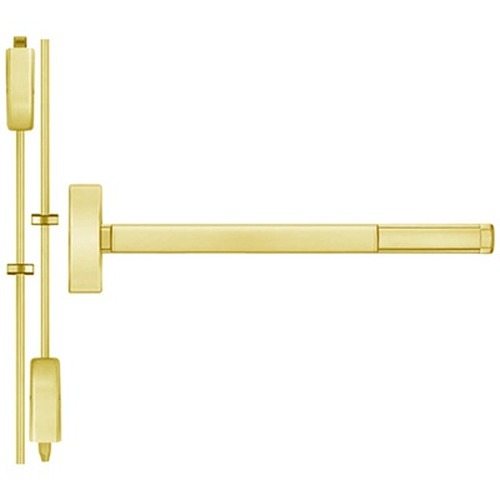

Apex Surface Vertical Rod Exit Device with Lever Trim

Quick Product Details

  • Vertical Rod Exit Device
  • Keyed Lever Function
  • Surface Mounted
Price: $2,535.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 2208CD-4908B-Hand-605

Choose Options Below

This Precision 2203-V4908A-630 keyed lever, surface, vertical rod exit device includes a "B" style lever set. This set consists of a heavy duty lever and surface vertical rod exit device with cylinder dogging. It is constructed with extra strength, shock-absorbing, overload springs and heavy duty cast, stainless steel internal components.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $2,535.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $15.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$15.00
No Rim Cylinder Needed
Rim Cylinder-Schlage C Keyway Bright Brass (US3) (QH200) + $15.00 Rim Cylinder-Schlage C Keyway Bright Brass (US3) (QH200) +$15.00

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Finish:

Bright Brass (US3) Special Order Only Bright Brass (US3) Special Order Only

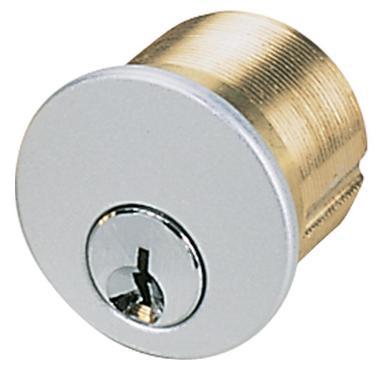

Choose Mortise Cylinder 1-1/4:

Satin Chrome 1-1/4 Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway +$13.00
No Mortise Cylinder
Bright Brass 1-1/4 Bright Brass 1-1/4" mortise cylinder-Schlage C Keyway +$13.00

Help Me Decide

  • Includes 2 keys

Overview

Non-Stock Special Order with 6-8 week lead time

Quality and Safety:
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1
  • Levers comply with ADA, Americans with Disabilities Act requirements
  • 5 year limited warranty

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
    • Rim Cylinder-Schlage C Keyway Bright Brass (US3) (QH200)
  • Finish:

  • Mortise Cylinder 1-1/4: info icon

    • Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway
    • No Mortise Cylinder
    • Bright Brass 1-1/4" mortise cylinder-Schlage C Keyway

Product at A Glance

  • Package includes 4908B lever and escutcheon
  • Classroom function requires a rim cylinder (not included)
  • Cylinder Dogging function requires a mortise cylinder (not included)
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4"  beyond the face of the door
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Vertical Rod exit device
Application Single and double doors with mullion
Function Keyed Lever:
- Key locks and unlocks lever
Handing Handed
Dogging Feature Cylinder Dogging Kit
Door Width 3'0"
Door Height 7'0"
Door Thickness 1-3/4"
Strike - Top Strike: S300, stainless steel, black powder coated (furnished standard)
- Bottom Strike: S460 flush mounted, steel, black powder coated
Latch Bolt - Top Latch bolt: Stainless steel deadlocking - 3/4" throw
- Bottom Latch bolt: steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"
