Precision Hardware 2403-2903A

Narrow Stile Apex Rim Exit Device with Night Latch Lever Trim

Quick Product Details

Rim Exit Device
Night Latch Function With Lever
Narrow Stile

Price: $1,294.00 /each

SKU: 2403-2903A

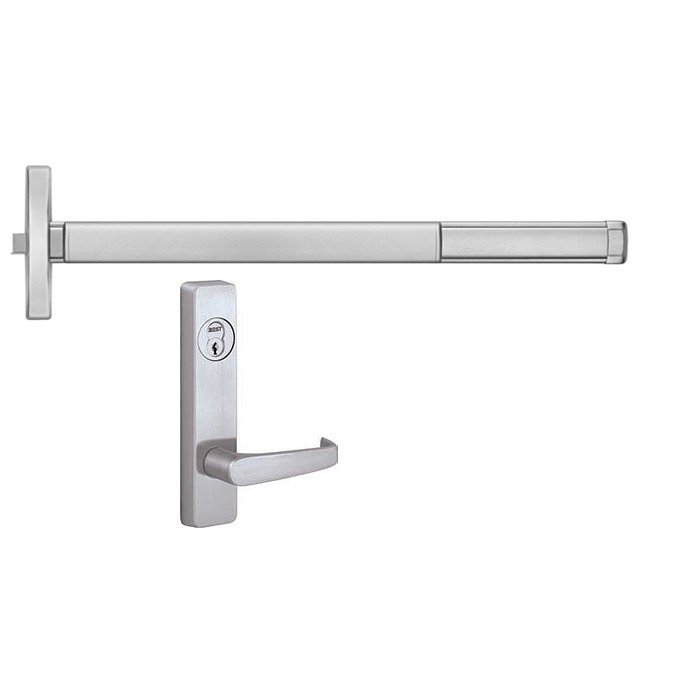

This Precision 2403-2903A narrow stile rim exit device includes a lever and escutcheon. The night-latch function allows a key to retract the latchbolt while keeping the door locked. This product is handed.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $1,294.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630-Satin Stainless Steel

613-Dark Bronze

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

1 Choose Finish:
2 Choose Handing:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

UL listed for panic hardware.
Certified to ANSI A156.3 Grade 1
5 year limited warranty

Available Options: Choose Options Above

Finish:
- 630-Satin Stainless Steel
- 613-Dark Bronze
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR

Product at A Glance

Package includes an escutcheon and a lever
Requires a rim cylinder (not included)
Functions are field selectable
Furnished standard with machine screws and full thread wood/sheet metal screws

Style	Rim exit device
Application	Aluminum and glass storefronts
Function	Night-Latch Function With Lever: - Key retracts latch and door remains locked
Handing	Handed
Door Width	2'7" to 3'0"
Door Thickness	1-3/4"
Dogging Feature	Hex key dogging standard
Strike	S988 stainless steel, black powdercoated roller strike
Latch Bolt	Stainless steel deadlocking - 3/4" throw
Touchbar Height	39-15/16"- from floor (standard)
Stile	Minimum width 1-3/4"

More Info

The Precision Hardware Apex 2403-2903A is a rim exit device suitable for narrow applications in aluminum and glass storefronts where the doors measure within the range of 2'7" to 3' in the width. This device is supplied with a night-latch, keyed, lever and requires a rim which is not included in the package.
