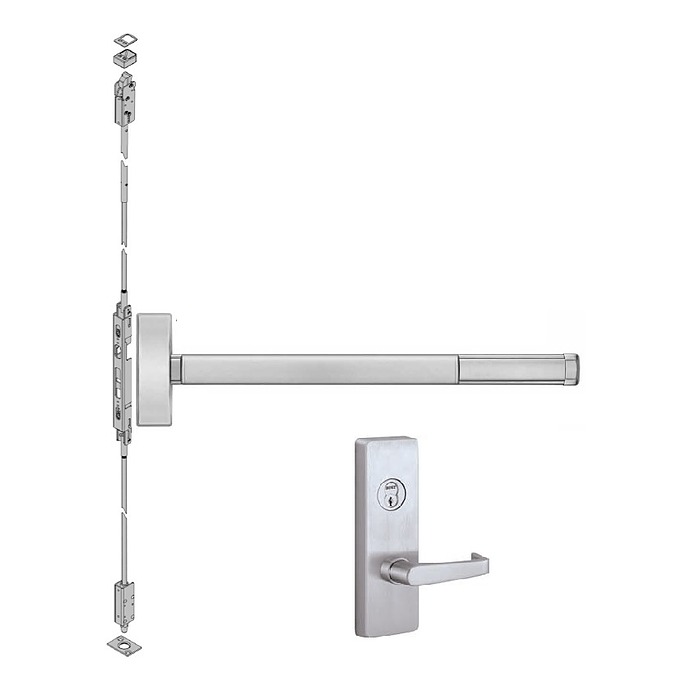

Precision Hardware 2808-V4908A-CD-630-3

Special order non stock item with 4 week lead time

• Concealed vertical rode exit device for all types of metal single and double door applications.
• With classroom function lever trim, key locks/unlocks lever.
• Vandal resistant lever, heavy duty lever trim designed to withstand abuse and vandalism. Requires a rim cylinder not included.
• Furnished standard for 1-3/4” thick, 3’-0” wide by 6’-8” to 8’-0” high openings.
• With cylinder dogging, less cylinder.
• Satin stainless steel finish-630
• Reversible for all functions and trims. Standard right hand reverse,RHRB.

Available Options: Choose Options Above

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR
