Precision Hardware FL2103-4903A

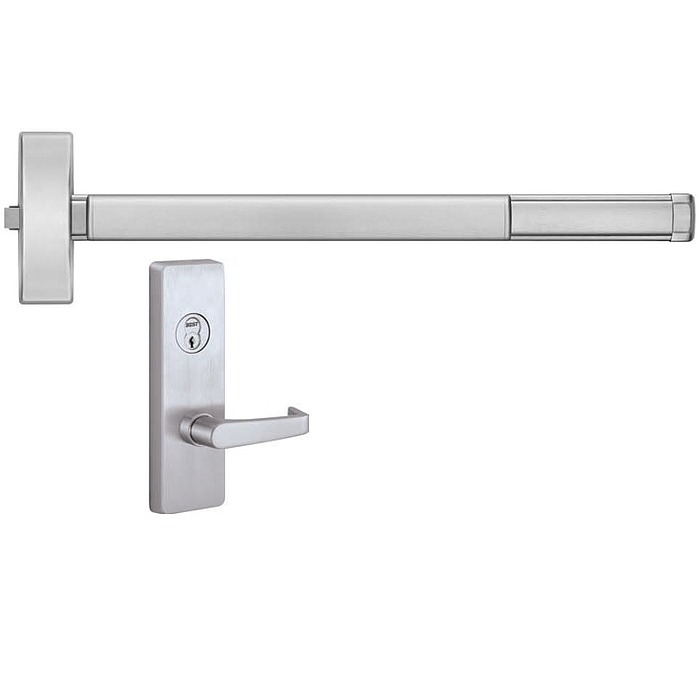

Fire Rated Apex Rim Exit Device with Night Latch Lever Trim

Quick Product Details

Rim Exit Device
Fire Rated
Night-Latch Function With Lever

Price: $2,341.00 /each

SKU: FL2103-4903A

Choose Options Below

This Precision FL2103-4903A is a fire-rated, UL listed for fire exit and panic hardware, rim exit device. It operates with the night-latch function lever set on the outside in which a key will retract the latch while keeping the door lock.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $2,341.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630-Satin Stainless Steel

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

3FT

4FT

Help Me Decide

3’ bar for 2’7” to 3’0”wide door
4’ bar for 3’1” to 4’0” wide door

1 Choose Finish:
2 Choose Handing:
3 Choose Rail Size:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

UL listed for fire exit hardware
UL listed for panic hardware
Certified to ANSI A156.3 Grade 1
Conforms to UL10C and UBC 7-2.
Levers comply with ADA, Americans with Disabilities Act
5 year limited warranty

Available Options: Choose Options Above

Finish:
- 630-Satin Stainless Steel
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Rail Size:
Rail Size
3’ bar for 2’7” to 3’0”wide door

4’ bar for 3’1” to 4’0” wide door
- 3FT
- 4FT

Product at A Glance

Package includes a lever and an escutcheon
Rim cylinder required (not included)
The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4" beyond the face of the door
Functions are field selectable except for the Double Cylinder option
Furnished standard with machine screws and full thread wood/sheet metal screws

Style	Fire Rated Rim exit device
Application	Single and double doors with mullion
Function	Night-Latch Function: - Key retracts latch and door remains locked
Handing	- Device is non-handed - Lever trim is handed
Door Thickness	1-3/4"
Strike	S300, stainless steel, black powder coated
Latch Bolt	Stainless steel deadlocking - 3/4" throw
Touchbar Height	39-15/16"- from floor (standard)
Stile	Minimum width 4-1/2"

More Info

Exit devices are a practical and convenient solution for safe and secure door openings. The push bar mechanism allows for easy exit by using the weight of the body or any heavy object to retract the . It is especially useful in fire rated applications since it is always operable from the inside and it conforms to UL fire standards.
