Precision Hardware FL5108-808A

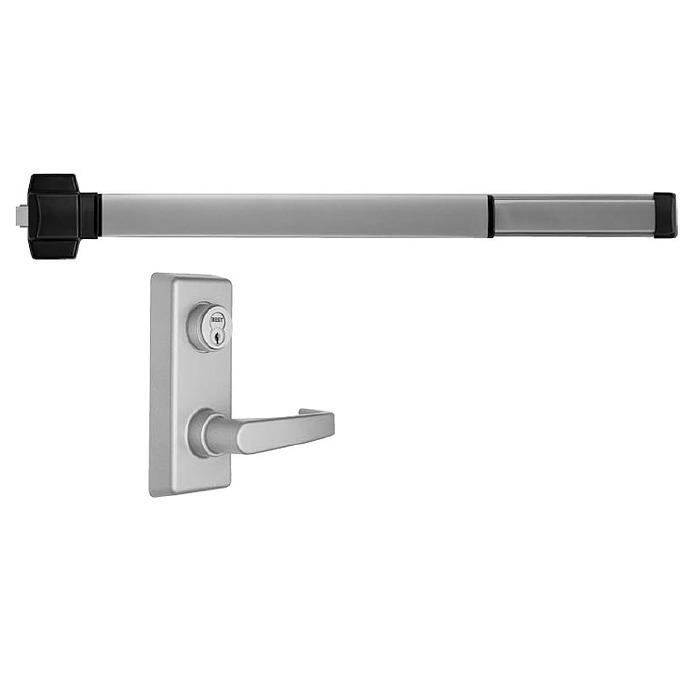

Reliant Fire Rated Rim Exit Device with Keyed Lever Trim

Quick Product Details

  • Rim Exit Device
  • Fire Rated
  • Classroom Function
  • For Doors 2'-7" to 3'-0" Wide
Price: $609.00 /each

SKU: FL5108-808A

Choose Options Below

This Precision FL5108-808A Reliant classroom function rim exit device is fire rated and suitable for fire exit applications with moderate traffic flow. A 1-1/4" mortise cylinder is required for use with this exit device.

  • In Stock!
  • Order in the next 22 hours 47 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $609.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 Aluminum Powder Coated 689 Aluminum Powder Coated
695 Dark Bronze Powder Coated 695 Dark Bronze Powder Coated

Choose Cylinder:

Need Help Deciding?
QH114- 1-1/4 QH114- 1-1/4" Mortise Cylinder-Schlage C Keyway-Satin Chrome Finish +$12.00
100CR -Keyed Arrow 6 pin small format (Best type) interchangeable Core + $34.00 100CR -Keyed Arrow 6 pin small format (Best type) interchangeable Core +$34.00
1E74-C4-RP3-Best IC Core Mortise Cylinder Housing, IC Core Not Included + $45.00 1E74-C4-RP3-Best IC Core Mortise Cylinder Housing, IC Core Not Included +$45.00
1C7A1-626-Best 7 Pin Uncombinated IC Core, A Keyway + $34.00 1C7A1-626-Best 7 Pin Uncombinated IC Core, A Keyway +$34.00
No Mortise Cylinder Needed

Help Me Decide

  • QH200 Rim cylinder - Schlage C keyway with 2 keys
  • Arrow 6 pin keyed small format IC core. - with control key to install or remove IC core and 2 operating keys
  • Best interchangeable Core Rim Cylinder Housing, accepts all Best Lock IC cores and any small format IC Core (core not included)
  • Best Uncombinated 7 pin A keyway small format Best interchangeable SFIC core. No pins,springs or keys, ready to be keyed by a locksmith.

Overview


Quality and Safety:
  • UL listed for fire exit hardware.
  • Certified to ANSI A156.3 Grade 1
  • Conforms to UL10C and UBC 7-2
  • 3 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • QH114- 1-1/4" Mortise Cylinder-Schlage C Keyway-Satin Chrome Finish
    • 100CR -Keyed Arrow 6 pin small format (Best type) interchangeable Core
    • 1E74-C4-RP3-Best IC Core Mortise Cylinder Housing, IC Core Not Included
    • 1C7A1-626-Best 7 Pin Uncombinated IC Core, A Keyway
    • No Mortise Cylinder Needed

Product at A Glance

  • Requires a 1-1/4” mortise cylinder
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Fire Rated Rim exit device
Application Single and double doors with mullion
Function Classroom Function:
- Key locks and unlocks lever
Handing - Device is non-handed
- Lever is handed but field reversible
Door Thickness 1-3/4"
Door Width 2'7" to 3'0"
Rail Size 3'
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 40-15/16"- from floor (standard)
Stile Minimum width 4-1/2"

More Info


Reliant rim exit devices are the ideal, economical solution for all your applications. This model FL5108-808A is fire rated for all fire single doors or double doors with a mullion. It is supplied with a classroom function trim for the outside of the door, in which a key will lock and unlock the lever to control traffic.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
