Rixson 1-ADJ-226-689

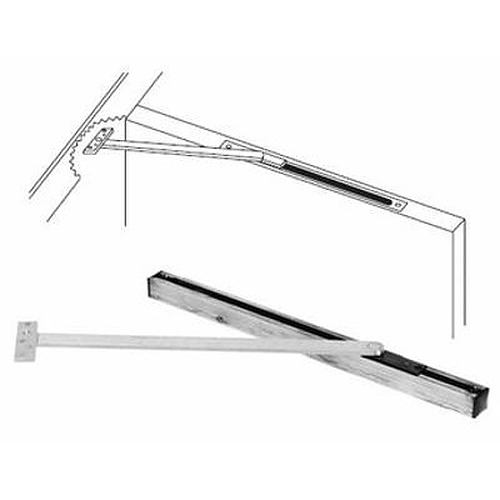

Special Order Heavy Duty Concealed Mount Ajustable Overhead Holder

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 1-ADJ-226-689

Recommended for high traffic, heavy abuse installations for interior or exterior doors. The Rixson 1 adjustable series of concealed mount overhead stops and holders are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special Order non stock item with 4 week lead time
  • Degree of opening is fully adjustable and can be adapted to changing needs.
  • Hold open function,door remains held open near deadstop location.
  • For doors 28-1/16" - 33" wide hung on standard hinges or 3/4" offset pivots.
  • Doors may be single or double acting.
  • Non-handed.
  • Slide track design.
  • Sprayed aluminum finish.

More Info

  • Recommended for high traffic, heavy abuse installations.
  • Heavy shock absorber spring provides 5°-7° compression before dead stop.
  • Surface on/off knob on hold open models.
  • Complete screw packet allows for wood or metal door and frame applications.
  • Non-metal slide block and shock block.
  • 110° maximum opening.
  • For 1-3/4" minimum door thickness.
  • Track is 1-3/16" tube.
  • UL listed as stop function.

Hanging means other than standard butts or offset pivots require special templating and pricing. Consult factory.

* On 24-28" doors - butt hinges only.
