Rixson 10-Series

Standard Duty Surface Mount Holder/Stop

Quick Product Details

  • Holder/Stop
  • Standard Duty
  • Single-Acting
SKU: 10-Series

Price: $83.00 /each

Choose Options Below

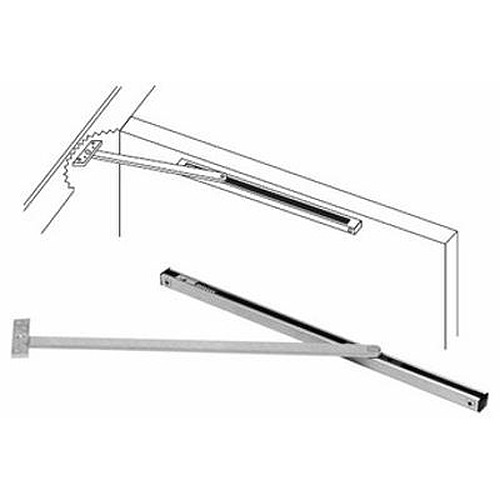

This Rixson 10-Series Checkmate, is an overhead holder/ stop family that can be used on medium weight doors with moderate traffic. We offer models with a hold-open or stop for various door sizes hung with offset pivots, butts or center-hung pivots.

  • In Stock!
  • Order in the next 26 hours 10 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $83.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Model:

Need Help Deciding?

Help Me Decide



Hanging Means

Models

Offset Pivots/Butts

Center Hung Pivots

Hold-Open

Stop

Multi

*18” - 24”

21” - 26-1/2”

10-126

10-136

10-146

24-1/16” - 30”

26-9/16” - 32”

10-226

10-236

10-246

30-1/16” - 36”

32-1/16” - 38-1/2”

10-326

10-336

10-346

36-1/16” - 42”

38-9/16” - 45”

10-426

10-436

10-446

42-1/16” - 48”

45-1/16” - 48”

10-526

10-536

10-546

*On doors measuring between 18”- 24” the hanging means can only be butts.

Please select one of the following models:

  • 10-126
  • 10-136
  • 10-226
  • 10-236
  • 10-326
  • 10-336
  • 10-426
  • 10-436
  • 10-526
  • 10-536
  • 10-146
  • 10-246
  • 10-346
  • 10-446
  • 10-546
  1. Select the column with the correct hanging means for your door (offset pivots/butts or center hung pivots)
  2. Select the row with the door size range which your door falls into
  3. Select the model you need (hold-open, stop or multi)

Choose Finish:

Overview


Suited For:
  • Exterior and interior medium weight doors with medium traffic

Quality:
  • UL listed as stop function
  • 2 year limited warranty

Special Orders Available:
  • Available with all architectural finishes
  • Torx® screws available
Contact us directly to place your special orders.


Available Options: Choose Options Above

  • Model: info icon

    • 10-126
    • 10-226
    • 10-326
    • 10-426
    • 10-526
    • 10-136
    • 10-236
    • 10-336
    • 10-436
    • 10-536
    • 10-146
    • 10-246
    • 10-346
    • 10-446
    • 10-546
  • Finish:

Product at A Glance

  • Slide track design
  • Recommended for medium weight, medium traffic installations
  • Degree of opening is fully adjustable and can be adapted to changing needs
  • Heavy shock absorber spring provides compression before deadstop
  • Multi function unit is shipped as a stop and can be converted to a hold-open or friction stay in field
  • Included complete screw packet enables use with wood and metal doors and frames
  • Non-metal slide block and shock block
  • Track is 3/4” square tube
Style Holder/stop
Door Handing Non-handed
Function Single Acting
Door Opening Maximum 110 degrees (adjustable)
Wiring Surface mounted

​Rixson overhead holder/stops are used to limit the amount of wear and tear damage that is done to a door assembly through normal frequent use, powerful winds, protecting closing mechanisms from vandalism or abuse. The 10-Series is a series of heavy duty, surface mount holders for single acting, medium weight doors. The degree of opening on this holder/stop can be adjusted according to the need of the door. It will allow the door to swing up to 110⁰.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Standard Duty Surface Mount Holder/Stop
