Rixson 117 1-1/2-619

Special Order Offset Pivot Set

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 117 1-1/2-619

Choose Options Below

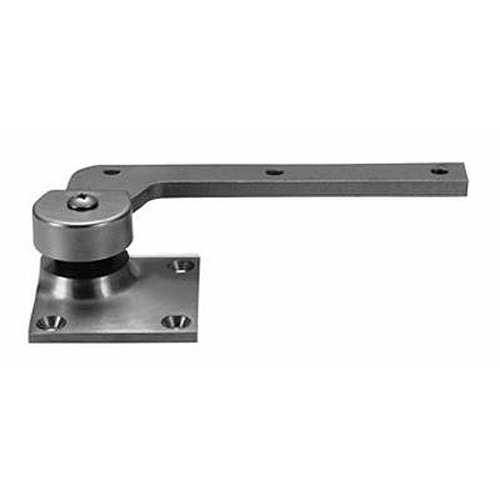

The Rixson 117-1-1/2, 1-1/2" offset pivot set for clad doors or framed trim interior doors weighting up to 150 lbs. Bottom pivot mortised into floor. Standard top pivot 180x1-1/2" included. M19x1-1/2" Intermediate pivot required.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order item with 5 week lead time

  • Satin nickel finish
  • For Offset Applications to clear trim on door or frame
  • 1-1/2" offset
  • For light weight interior doors
  • Weight to 150 lbs.
  • Door Width up to 3'6"

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Includes standard top pivot #180x1-1/2"
  • Intermediate pivot required: M19x1-1/2" (order separately)
  • Bottom pivot mortised into floor
  • Doors over 60" require the use of one intermediate pivot. Every additional 30"(762mm) of door height warrants another intermediate pivot
  • 1-1/2" offset (measured from centerline of pivot to face of door)
  • Door edges must be beveled 1/8" in 2"
  • Furnished with wood and machine screws
  • Doors will swing 180 degrees, trim permitting
  • Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Available in all standard architectural finishes. Contact us directly to order a finish not shown.
