Rixson 1-1/2 Offset Offset bottom Pivot Less Top Pivot Special Orders



Rixson 117-1-1/2-LTP-693

1-1/2 Offset" Offset bottom Pivot Less Top Pivot

Quick Product Details

  • Bottom Pivot Only
  • Offset Hung
  • Floor mounted
  • For interior doors
  • 693-Black finish
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 117-1-1/2-LTP-693

Choose Options Below

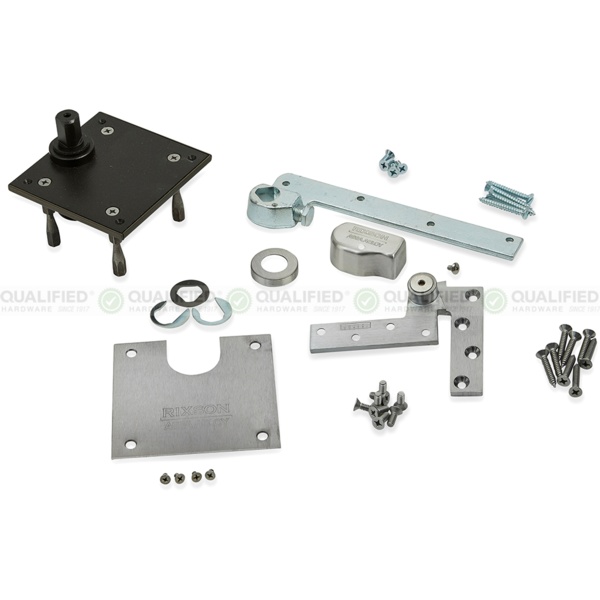

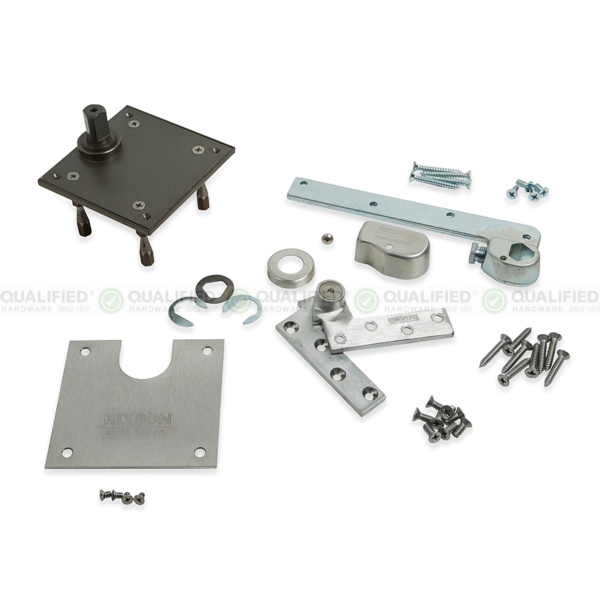

This Rixson 117-1-1/2, 1-1/2" offset bottom pivot less top pivot gets mortised into the floor. It can hold doors weighing up to 150 pounds that are not wider than four feet. No top pivot.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

693-Black 693-Black

Overview

Special order non stock item with 4 week lead time
The Rixson 117-1-1/2, 1-1/2" offset bottom pivot for clad doors or framed trim interior doors weighting up to 150 lbs.

  • For Offset Applications to clear trim on door or frame
  • 1-1/2" offset
  • For light weight interior doors
  • Weight to 150 lbs.
  • Door Width up to 3'6"


Quality:
  • 2 year limited warranty



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

Style Bottom Pivot
Application 1-1/2" Offset-Hung
Offset 3/4" (measured from centerline of pivot to face of door)
Door Handing Handed
Door Weight Up to 150 lbs.
Door Width Up to 3'0"

More Info


​Friction can many times be the cause of slow movement of a door. The operation of a standard butt knuckle hinge works with knuckles swiveling over ball bearings that are between the joints. This motion causes friction on the ball bearings because the weight and potential energy of the door are placed on the hinge. Friction causes great resistance  and lowers the efficiency of the hinges making more force necessary to open or close the door. This principle can be the limiting factor in calculating the maximum weight and size of your door, because the heavier the door is, the greater the decrease of efficiency. Pivot sets allow the weight of the door to be borne by the floor, and can therefore accommodate very heavy doors.
