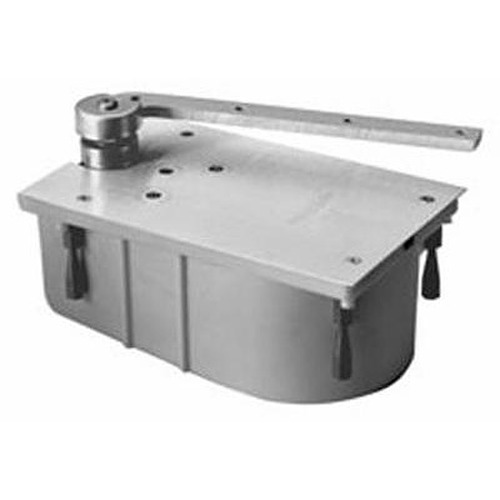

Rixson 127-Complete

3/4" Offset Deep Reveal Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior doors
  • For deep reveal applications
  • Offset
  • Heavy Duty
  • Single Acting
SKU: 127-Complete can include all components

Starting price: $858.00 /each

Choose Options Below

This Rixson 127-Complete heavy duty offset floor closer is ideal for applications on interior or exterior doors where vertical movement of the door at installation is not possible, such as a door inset in a deep reveal, or with no ceiling clearance.

  • In Stock!
  • Order in the next 34 hours 17 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $858.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Center Hung Floor Closer Body:

Center Hung Floor Closer Body image
Buy Separately

2) Cement Case:

Cycolac Cement Case image
Buy Separately


3) Floor Plate:

27/127 S Floor Plate image
Buy Separately


4) Arm Package:

Uni-Chek Arm Package image
Buy Separately


5) Optional Intermediate Pivot:

Offset Full Mortise Intermediate Pivot image
Buy Separately


6) Top Pivot:

Offset Full Mortise Top Pivot image
Buy Separately


Choose Handing:

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Hold Open:

Help Me Decide

Selective Hold-Open (SHO) - Factory-installed on 27 & 28 Series closers. Hold-open may be turned on/off.

Choose Opening Degrees:

Choose Finish:

Overview


Suited for:
  • Deep reveal applications

Quality:
  • 10 year limited warranty

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • SHO (Selective Hold-Open)
  • Opening Degrees:

    • 90 Degrees
  • Finish:

Product at A Glance

  • A built-in positive dead stop controls door not to swing further than set opening degrees
  • Closing-speed, latch-speed and backcheck adjustment is enabled by separate and independent valves
  • Allows for vertical adjustment of door
  • Adjustable arm allows to position the door to close against the stop
  • Not allowed for fire rated doors
  • Requires a frame or applied stop such as #60131
Style Complete Floor Closer
Application Offset Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 350 lb
Door Size Up to 4'0 x 8'6"

When a door is inset in a deep reveal, or when there is no ceiling clearance, vertical movement of the door at installation is not possible. This Rixson 127 complete floor closer is constructed especially for such cases where the door can not be moved vertically. It is an offset floor closer with a 3/4” offset which is the standard. The arm is adjustable and enables the positioning of the door for it to close against the stop. The 127 is ideal for interior and exterior doors that way up to three-hundred and fifty pounds. A positive dead-stop is built in to keep the door from swinging further than the degrees you set it to swing to (for this closer it would be ninety degrees). With the use of this closer adjusting a door vertically is feasible.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Center Hung Floor Closer Body

Offset Full Mortise Intermediate Pivot

Offset Full Mortise Top Pivot
