Rixson 128-3/4

Center Hung Pivot Set

Quick Product Details

  • Pivot Set
  • Center-Hung
  • Light Duty
SKU: 128-3/4

Price: $149.00 /each

Choose Options Below

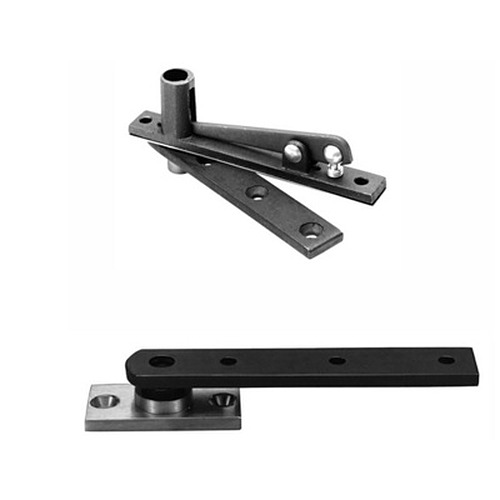

This Rixson 128 3/4 is a center-hung pivot set which includes the Rixson #320 top pivot. It is designed for lightweight interior doors. Its bottom pivot mounts directly to the floor.

  • In Stock!
  • Order in the next hour 32 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $149.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Overview


Suited for:
  • Interior light weight doors

Quality:
  • 2 year limited warranty

Special Orders Available:
  • All standard architectural finishes available
Contact us directly to place your special order.


Available Options: Choose Options Above

Product at A Glance

  • Includes top pivot #320
  • Bottom pivot mounts directly on the door
  • All center hung pivot sets are double-acting unless stopped by the door frame
  • Not allowed for use on labeled fire doors and frames
  • Pivot point is centered in the thickness of the door
  • Door must have radius on the pivot edge
  • Fully concealed when the door is closed
  • Doors do not return to center
  • The weight of the door is borne by the floor
  • Includes wood and machine screws
Style Pivot Set
Grade Light Duty
Application Center-hung
Door Handing Non-handed
Door Weight Up to 250lb
Door Size 3'6" x 8'6"

One of the great benefits of the bottom pivot’s alignment with the floor that directs the potential energy produced by the door’s weight straight onto the floor, is that it greatly reduces wear and tear on the door frame. Because the weight of  the door is not supported by the frame, bending and misshaping of the frame are prevented. In addition, screws that secure pivots are held in shear which makes them free of any tension that is caused by a door’s weight. Another advantage is a tremendous decrease in friction, making the opening of all doors, even those weighing over one thousand pounds, almost effortless.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Center Hung Pivot Set
