Rixson 2-Series-605

Special Order Adjustable Standard Duty Concealed Holder/Stop

Quick Product Details

Holder/Stop
Standard Duty
Single/Double acting

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 2-Series-605

Choose Options Below

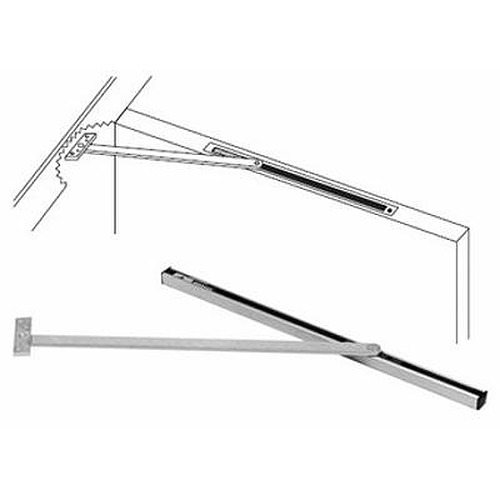

This Rixson 2-Series is an adjustable standard duty concealed holder/stop designed for exterior and interior doors that have moderate door traffic and medium weight. These holders are great for reducing the wear and tear of your doors. The door opening degrees on the 2-series can be adjusted to suit the current needs of the doorway.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Bright Brass 605 - Special Order with 6 week lead time

Choose Model:

Need Help Deciding?

2-426

2-526

2-236

2-336

2-436

2-536

2-146

2-246

2-346

2-446

2-546

Help Me Decide

Hanging Means		Models
Offset Pivots/Butts	Center Hung Pivots	Hold-Open	Stop	Multi
*18” - 24”	------------------------	------------------------		2-146
24-1/16” - 30”	27” - 32”	-----------------------	2-236	2-246
30-1/16” - 36”	32-1/16” - 38-1/2”	------------------------	2-336	2-346
36-1/16” - 42”	38-9/16” - 45”	2-426	2-436	2-446
42-1/16” - 48”	45-1/16” - 48”	2-526	2-536	2-546

*On doors measuring between 18”- 24” the hanging means can only be butts.

Please select one of the following models:

2-136
2-236
2-336
2-426
2-436
2-526
2-536
2-146
2-246
2-346
2-446
2-546

Select the column with the correct hanging means for your door (offset pivots/butts or center hung pivots)
Select the row with the door size range which your door falls into
Select the model you need (hold-open, stop or multi)

1 Choose Finish:
2 Choose Model:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Special Order Non-Stock Item with 6 Week Lead Time

Suited For:

Interior medium weight doors with medium traffic

Quality:

UL listed as stop function
2 year limited warranty

Special Orders Available:

All architectural finishes
Torx® screws

Available Options: Choose Options Above

Finish:
- Bright Brass 605 - Special Order with 6 week lead time

Model:

2-426
2-526
2-236
2-336
2-436
2-536
2-146
2-246
2-346
2-446
2-546

Product at A Glance

Slide track design
Recommended for medium weight, medium traffic installations
Degree of opening is fully adjustable and can be adapted to changing needs
Heavy shock absorber spring provides compression before dead stop
Included complete screw packet enables use with wood and metal doors and frames
Non-metal slide block and shock block
Track is a 3/4” tube

Style	Holder/Stop
Grade	Standard duty
Door Handing	Non-handed
Function	Single or Double Acting
Door Opening	Maximum 110 degrees (adjustable)

More Info

Rixson's 2-series of concealed overhead holders/stops have adjustable opening degrees and they can be used on single or , right or left doors. These door holders are used to decrease the wear and tear of your door, frame and hanging means by limiting door travel. The 2-series is a slide track design holder for use on medium weight doors with moderate traffic. Maximum door opening is on-hundred and ten degrees. Select above the model which suits the needs of your door.
