Rixson 20-Complete

3/4" Offset Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial interior doors
  • For replacement applications
  • Offset Hung
  • Heavy Duty
  • Single Acting
Starting price: $1,544.00 /each

SKU: 20-Complete can include all components

Choose Options Below

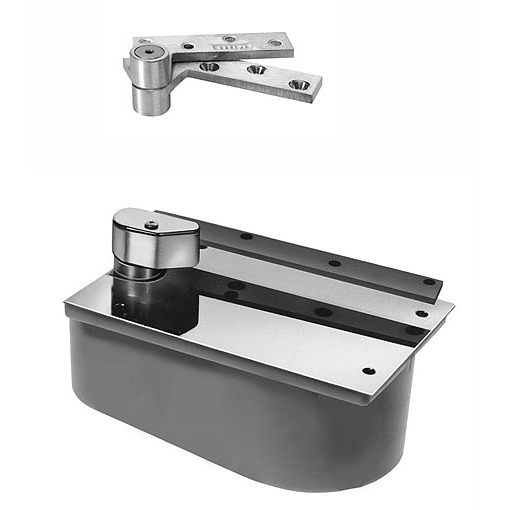

This Rixson 20 complete is a heavy duty offset hung floor closer. This closer is designed for closer replacement applications on interior doors weighing up to 200 lbs.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,544.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Offset Replacement Floor Closer image
Buy Separately

2) Cement Case:

20/21 Series Cement Case image
Buy Separately


3) Floor Plate:

20 Series Floor Plate image
Buy Separately


4) Arm Package:

3/4
Buy Separately


5) Optional Intermediate Pivot:

Offset Full Mortise Intermediate Pivot image
Buy Separately


6) Top Pivot:

Offset Full Mortise Top Pivot image
Buy Separately


Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
612 - Satin Bronze (US10) 612 - Satin Bronze (US10)
625 - Bright Chrome (polished) (US26) 625 - Bright Chrome (polished) (US26)
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)
613-Dark Bronze 613-Dark Bronze

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview


Suited for:
  • Commercial interior doors in replacement applications

Quality:
  • 2 year limited warranty

Available Options: Choose Options Above

Product at A Glance

Style Complete Floor Closer
Application Offset Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 200 lb
Door Width Up to 3'0

More Info


This Rixson 20 offset hung floor closer is for replacement applications. A complete closer package includes everything needed for a rebuilt installation. All Rixson’s heavy duty-floor closers are designed so that the weight of the door is supported by the bottom arm and the floor. This enables the door to use  gravity to its advantage and helps the door to swing open with considerably less resistance. It also allows for the accommodation of heavier doors and greatly lessens the stress on the frame. Vertical adjustment is thereby made possible and door sag is completely eliminated. The Rixson heavy duty floor closers are great for commercial use where there is high door traffic.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
