Rixson 27 1.5-Complete-622

Special Order Complete1-1/2" Offset Floor Closer

Quick Product Details

Complete Floor Closer
For commercial exterior and interior doors
Offset Hung
Heavy Duty
Single Acting
1-1/2" Offset

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 27 1.5-Complete-622

Choose Options Below

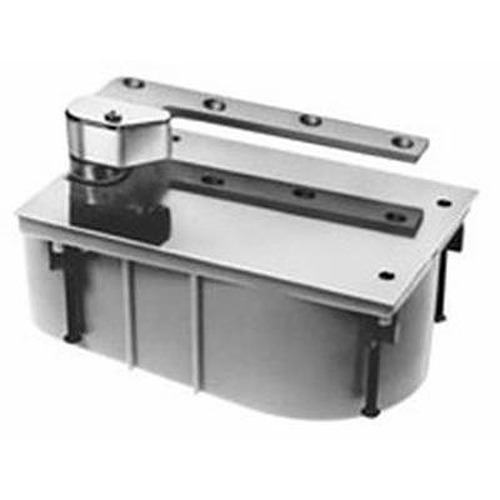

This Rixson 27-1.5-Complete heavy duty offset floor closer is a concealed and efficient door closer that satisfies most offset-hung requirements and is designed for exterior and interior heavy doors with high door traffic.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

NHO (No Hold-Open)

SHO (Selective Hold-Open) +$72.00

Help Me Decide

No hold-open	Door does not remain open
Selective hold-open	Door hold-open can be controlled via a screw on top of the closer to be automatic or non hold-open

Choose Opening Degrees:

85 Degrees

90 Degrees

Choose Handing:

Left Hand (LH)

Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Choose Flat Black Finish:

622 Flat Black Finish

Overview

Special order non stock item with 5 week lead time
1-1/2" Offset Pivot point located 3/4" from the heel edge of the door and1-1/2" from face of door. Used on doors with cladding on face
or trim on frame.

Heavy duty doors in commercial exteriors and interiors.
Complete kit includes 27 closer body, 180-1-1/2 top pivot, 252060 1-1/2 bottom arm, 274050 floor plate and 253000 cement case

Available Options: Choose Options Above

Hold Open:

Hold Open

No hold-open

Door does not remain open

Selective hold-open
Door hold-open can be controlled via a screw on top of the closer to be automatic or non hold-open
- NHO (No Hold-Open)
- SHO (Selective Hold-Open)
Opening Degrees:
- 85 Degrees
- 90 Degrees
Handing:

Handing

The hand of a door is always determined from the outside.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door
- Left Hand (LH)
- Right Hand (RH)
Flat Black Finish:
- 622 Flat Black Finish

Product at A Glance

Built-in positive dead stop
Separate and independent valves for closing-speed, latch-speed and backcheck adjustment
Allows for Vertical Door Adjustment
1-1/2” offset allows for installation variations such as decorative door panels.
Intermediate pivot recommended with use of this product
Doors up to 90” in height should use one intermediate pivot. Each additional 30” warrants another intermediate pivot

Style	Complete Floor Closer
Application	Offset-Hung
Offset	1-1/2"
Door Handing	Handed
Function	Single Acting
Door Weight	Up to 250 lb
Door Width	Up to 4 feet

More Info

This product is a variation of Rixson’s 27. It closely resembles the 27-3/4, however this model has a 1-1/2” . When purchasing the complete package this closer includes the 27 floor closer body, a cycolac cement case, and the 27/127 S floor plate, which are identical to the components of the Rixson 27-3/4, and the 1-1/2” arm package, the 1-1/2” and the 1-1/2” top pivot which make this product unique. There are many options available for this item including different finishes, door handing, , and opening degrees which can be selected above. This closer is and , and is ideal for interior and exterior doors in commercial buildings that are up to four feet wide and weigh up to two hundred and fifty pounds.
