Right hand, non hold-open shown.

Left hand shown.

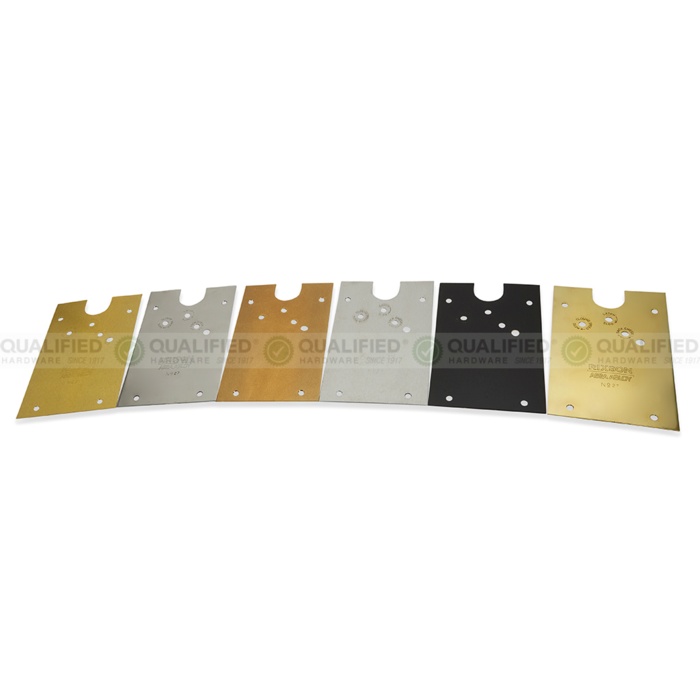

Standard available finishes shown.

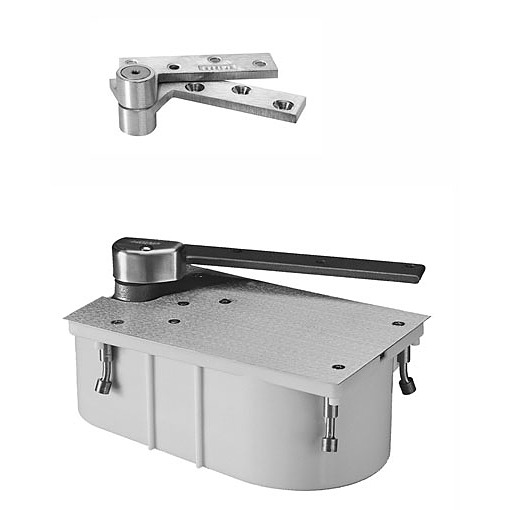

Rixson 27-3/4-Complete

3/4" Offset Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior doors
  • Offset Hung
  • Heavy Duty
  • Single Acting
SKU: 27-3/4-Complete can include all components

Starting price: $821.00 /each

Choose Options Below

This Rixson 27-3/4-Complete is a high quality, concealed offset floor closer that meets most qualifications for offset-hung closers. It is ideal for use with doors in commercial interiors and exteriors that have heavy traffic and weigh up to 450 lbs.

  • In Stock!
  • Order in the next 18 hours 11 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $821.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Offset Floor Closer Body image
Buy Separately

2) Cement Case:

Cycolac Cement Case image
Buy Separately


3) Floor Plate Package:

27/127 S Floor Plate image
Buy Separately


4) Arm Package:

3/4
Buy Separately


5) Optional Intermediate Pivot:

Offset Full Mortise Intermediate Pivot image
Buy Separately


6) Top Pivot:

Offset Full Mortise Top Pivot image
Buy Separately


Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
606 - Satin Brass (US4) 606 - Satin Brass (US4)
612 - Satin Bronze (US10) 612 - Satin Bronze (US10)
613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
629 - Polished Chrome 629 - Polished Chrome
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Hold Open:

NHO (No Hold-Open)
SHO (Selective Hold-Open) +$63.00

Help Me Decide



No hold-open

Door does not remain open

Selective hold-open

Door hold-open can be controlled via a screw on top of the closer to be automatic or non hold-open


Choose Opening Degrees:

85 Degrees 85 Degrees
90 Degrees 90 Degrees

Overview


Suited for:
  • Doors in commercial interiors and exteriors that have heavy use and weigh up to 450 lbs.

Quality:
  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

Style Floor Closer
Application Offset-Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 450 lb
Door Width Up to 4'0

Rixson’s floor closers are very efficient. The fact that they are well concealed is great for the aesthetics of the door and makes the door vandal resistant since the closer is hidden from view. The Rixson 27 model is a heavy duty closer which makes it ideal for use with heavy doors that have high door traffic such as doors in large department stores, large office buildings, theater entrances, school entrances, school or office restrooms and store or bank entrances. This product has a built-in positive dead stop which prevents the door from swinging beyond the set opening degree and has separate and independent valves for the adjustment of the closing-speed, latch-speed and backcheck of the door. The Rixson 27 is the standard closer used for offset applications.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Offset Floor Closer Body

Offset Full Mortise Intermediate Pivot

Offset Full Mortise Top Pivot

Installing the 27 3/4

Installing the 27 3/4" Offset
