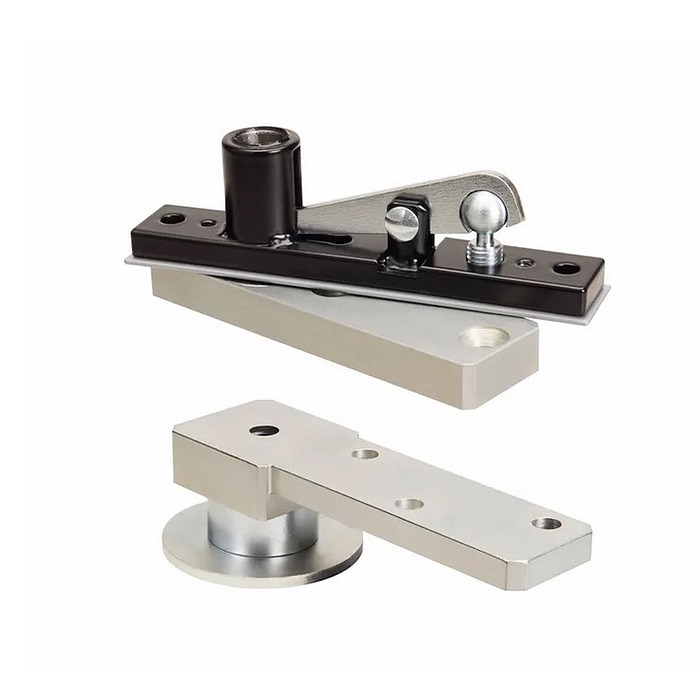

Rixson 270

Special Order Center Hung Pivot Set

Quick Product Details

  • Top Pivot
  • Center-hung
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 270

Choose Options Below

This Rixson 270 is a center hung pivot set used for doors weighing up to 300lbs.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)
613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)


Non-Stock Special Order with 9-11 week lead time

Suited for:

  • Applications where the door is designed to sit center hung in a non-cased opening


  • 2 year limited warranty

Special Orders Available:
  • All standard architectural finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

  • Non-handed
  • For doors weighing up to 300lbs
  • Top pivot included
  • Bottom Pivot mounts directly to the floor
  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Not allowed for use on labeled doors and frame
  • Furnished with wood and machine screws
  • Pivot set features sealed bearings for protection against weather and debris
Style Top Pivot
Application Center-Hung
Maximum Door Weight 300lbs.
Door Handing,Maximum Door Size Non-Handed,3'8" x 8'6"
