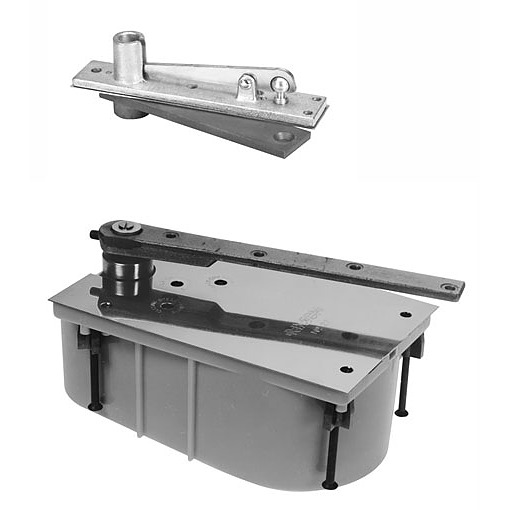

Rixson 28-554-Complete

Center Hung Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior doors
  • Center-Hung
  • Heavy Duty
  • Single Acting
Starting price: $1,427.00 /each

SKU: 28-554-Complete can include all components

Choose Options Below

This Rixson 28-554-Complete center-hung floor closer is an efficient door closer designed for exterior and interior doors. Includes a fixed arm designed to conceal adjustment screws on the face of the door.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,427.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Center Hung Floor Closer Body image
Buy Separately

2) Cement Case:

Cycolac Cement Case image
Buy Separately

3) Floor Plate:

28/328/428 Floor Plate image
Buy Separately

4) Arm Package:

Center Hung Arm Package image
Buy Separately

5) Top Pivot:

Earthquake Tolerant Top Pivot image
Buy Separately
Buy Separately

Choose Hold Open:

NHO (Non Hold-Open)
SHO (Selective Hold-Open) +$94.00

Help Me Decide

No hold-open

Door does not remain open

Selective hold-open

Door hold-open can be controlled via a screw on top of the closer to be automatic or no hold-open

Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
606 - Satin Brass (US4) 606 - Satin Brass (US4)
612 - Satin Bronze (US10) 612 - Satin Bronze (US10)
613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
629 - Polished Chrome 629 - Polished Chrome
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door


Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide


Suited for:
  • Standard doors in commercial exteriors and interiors.

Quality and Safety:
  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Positive dead stop is built into this closer
  • There are separate and independent valves for the adjustment of closing-speed, latch-speed and backcheck of door
  • Vertical door adjustment is allowed with this closer
  • Concealed arm designed to eliminate visible adjusting screws on face of door
  • Not allowed for use with fire rated doors
  • Frame or applied stop required such as #60131
Style Floor Closer
Application Center-hung
Door Handing Handed
Function Single Acting
Door Weight Up to 350 lb
Door Size Up to 4' x 8'6"

More Info

The components of the Rixson model 28-554 are identical to the components of the Rixson 28 model except for the Concealed Arm.
  • The arm package in the 28-554 model is designed to conceal adjustment screws on the face of a wood door while the 28 model includes a standard center hung arm package.
  • The 28-554 includes the option of an earthquake tolerant top pivot which is ideal for areas that are prone to earthquakes, and the 28 model does not include this option.
This closer is single-acting which allows the door to swing in one direction only and it is not allowed for use on doors that are fire rated. It is suitable for heavy doors weighing up to 350 pounds and measuring four feet by eight feet and six inches, that have high door traffic and are located in commercial exteriors and interiors. A frame or applied stop such as #60131 is required to be used with this closer.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
