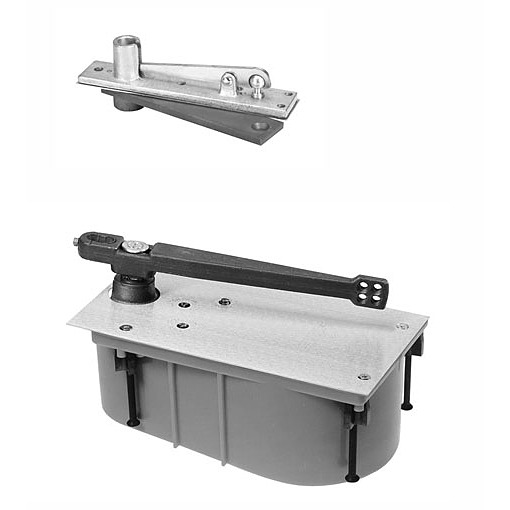

Rixson 28-Complete

Center Hung Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior doors
  • Center-Hung
  • Single Acting
Starting price: $1,427.00 /each

SKU: 28-Complete can include all components

Choose Options Below

This Rixson 28 - Complete is the standard heavy duty, center-hung, single acting floor closer, for use on exterior and interior doors, that satisfies most requirements for center hung closers. Its adjustable arm allows for the positioning of the door to close against the stop.

  • Stock Item
  • Order in the next 7 hours to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,427.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Center Hung Floor Closer Body image
Buy Separately

2) Cement Case:

Cycolac Cement Case image
Buy Separately


3) Floor Plate:

28/328/428 Floor Plate image
Buy Separately


4) Arm Package:

Center Hung Arm Package image
Buy Separately


5) Top Pivot:

Center Hung Top Pivot image
Buy Separately


6) Optional Wood Door Bracket:

Wood door Shim/plate package image
Buy Separately


Choose Hold Open:

NHO (Non Hold-Open)
SHO (Selective Hold-Open) +$94.00

Help Me Decide

No hold-open

Door does not remain open

Selective hold-open

Door hold-open can be controlled via a screw on top of the closer to be automatic or no hold-open


Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
606 - Satin Brass (US4) 606 - Satin Brass (US4)
612 - Satin Bronze (US10) 612 - Satin Bronze (US10)
613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
629 - Polished Chrome 629 - Polished Chrome
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide

Overview


Suited for:
  • Standard doors in commercial exteriors and interiors.

Quality and Safety:
  • 10 year limited warranty

Special Order:

  • This closer is configured in the standard spindle length, 3/4" from the Boss and 1-3/8" from the closer body. If you have a non-standard spindle length, please give us a call at 866-749-7661 to discuss options for your individual needs.

Available Options: Choose Options Above

Product at A Glance

  • Built-in positive dead stop for door swing control
  • Separate and independent valves enables the adjustment of closing-speed, latch-speed and backcheck
  • Permits vertical adjustment of door
  • Includes adjustable arm which allows for the positioning of  the door to close against the stop.
  • This product is not permitted for use with fire rated doors
  • An applied stop or frame is required with the use of this product (#60131)
Style Floor Closer
Application Center-hung
Door Handing Handed
Function Single Acting
Door Weight Up to 350 lb
Door Size Up to 4'0"x 8'6"

More Info


Rixson’s Model 28 heavy duty floor closer is recommended as the standard center hung closer used on exterior and interior center hung applications. This product satisfies most requirements for center hung floor closers and therefore makes for a great choice for use on any center hung  doors that weigh up to three hundred and fifty pounds and measure no more than four feet in width and eight feet and six inches in height. An adjustable arm is included in this complete package which allows for the positioning of the door to close against the stop. There are six finish options to choose from to suit your taste, and two opening degree options to satisfy your needs. This closer is also available with no hold-open or selective hold-open, and in right handed and left handed.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

Rixson 28 Installation thumbnail

Rixson 28 Installation
