Rixson 30-Complete

Double Acting Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior doors
  • Center-Hung
  • Heavy Duty
  • Double Acting
SKU: 30-Complete can include all components

Price: $972.00

Choose Options Below

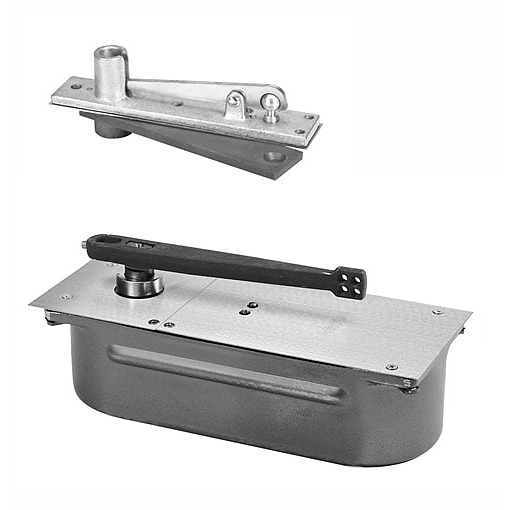

This Rixson 30 complete center-hung, double acting floor closer is designed for interior or exterior applications where it is necessary for the door to be able to swing in both directions. See more product information below

  • In Stock!
  • Order in the next 36 hours 3 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $972.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Double Acting Center Hung Floor Closer Body image

2) Cement Case:

30 Series Cement Case image

3) Floor Plate:

30 Series Floor Plate image

4) Arm Package:

30/40 Series Arm Package image

5) Top Pivot:

Earthquake tolerant top pivot image

Choose Finish:

Choose Hold Open:

Need Help Deciding?

Help Me Decide



No hold-open

Door does not remain open

Automatic  hold-open at 90⁰

Door remains open at 90⁰ until manually closed (requires 93⁰ swing)

Automatic  hold-open at 100⁰

Door remains open at 100⁰ until manually closed (requires 103⁰ swing)

Overview


Suited for:
  • Applications where double action is necessary on exterior or interior doors

Quality and Safety:
  • 10 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • AHO (Automatic Hold-Open) 90 degrees
    • AHO (Automatic Hold-Open) 100 degrees

Product at A Glance

  • Centering arm with adjustment screws in face of door
  • Adjustable closing speed valve for each direction of door swing
  • Mechanism returns door to center
  • Maximum door opening 103⁰
  • This product may not be used with fire-rated doors
  • Overhead stop recommended for exterior or high traffic doors
Style Floor Closer
Application Center-hung
Door handing Non-handed
Function Double Acting
Door Weight Up to 200 lb
Door Size Up to 4'0 x 8'6"

Double-acting floor closers are great for specific applications since they have the ability to swing freely inward and outward. This Rixson 30 model is a great choice of a double acting, center-hung closer. The closer’s mechanism returns the door to the center and allows the door to open a maximum of 103 degrees. The closing speed of each direction of the door swing is adjustable. This closer is non-handed and therefore can be used with right or left handed doors. The maximum door weight for doors using this closer is two hundred pounds and the maximum door size is 4’ by 8’6”. An overhead stop is recommended for use with exterior or high traffic doors.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Center Hung Top Pivot

Double Acting Center Hung Floor Closer Body

Earthquake tolerant top pivot
