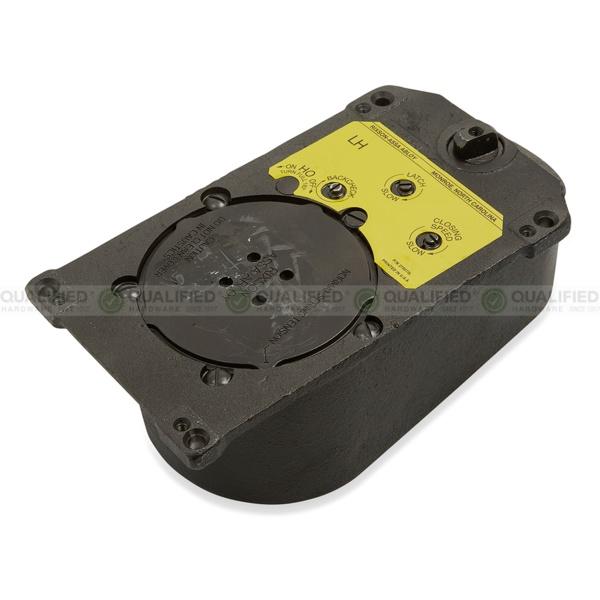

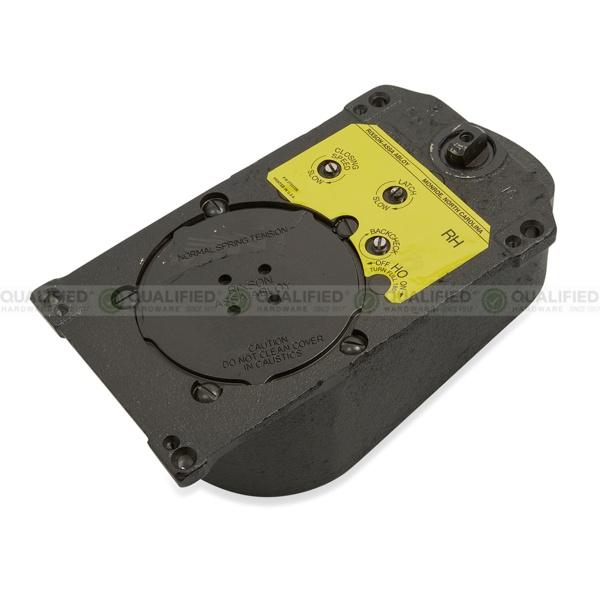

Rixson 327-1/2 EXT

Special Order Offset Floor Closer Body for Independently Hung Doors with 1/2" Extended Spindle

Quick Product Details

  • Floor Closer Body
  • For Commercial independently hung exterior and interior doors
  • Offset Hung
  • Heavy Duty
  • Single Acting
  • 1/2" Extended Spindle
  • 90° Maximum Door Swing
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 327-1/2 EXT

Choose Options Below

This Rixson 327 offset floor closer body adds floor closer control and durability to a door hung with hinges or pivots. It can be used on interior and exterior doors in commercial applications. With 1/2" extended spindle.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview


Suited for:
  • 1/2" extended spindle to accommodate special floor conditions.
  • Independently hung interior or exterior doors

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Separate and independent valves for closing-speed, latch-speed and backcheck adjustment
  • Uses cycolac cement case
  • Door hanging means (by other brands) needs to be specified to determine maximum door weight.
  • Allows for 90 degrees maximum door swing
  • Auxiliary stop recommended
  • Complete installation requires closer body, mortise door rail, and slide track type bottom arm
  • Extended spindle required for threshold applications
  • Special template may be required
  • Not available in “PH”, “DA” and hold-open
Style Floor Closer Body
Application Offset Hung
Door Handing Handed
Function Single Acting
Door Weight Determined by door hanging means
Door Width Up to 4'0
Door Thickness 1-3/4"

More Info


For a door that is hung with hinges or pivots, the Rixson 327 offset floor closer body adds floor closer control and durability. In order to determine the maximum door weight, the hanging means (by other brands) must be specified. A complete installation requires a closer body, mortise door rail, and slide track type bottom arm. An extended spindle is required for threshold applications and a special template may be necessary for a proper installation. This product is not available with the Physically Handicapped (PH), Delayed Action (DA) and Hold-Open (HO) features.
