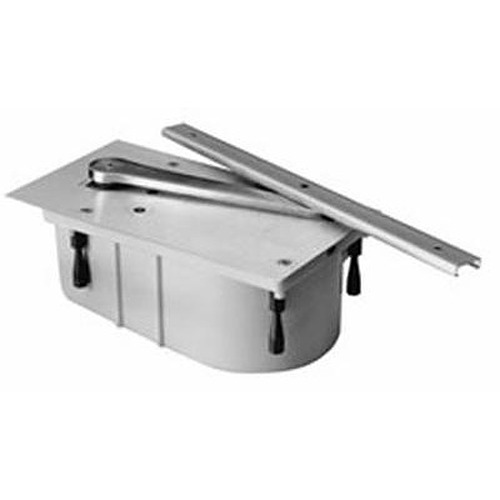

Rixson 327-Complete

3/4" Offset Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial interior independently hung doors
  • Offset Hung
  • Heavy Duty
  • Single Acting
Starting price: $1,063.00 /each

SKU: 327-Complete can include all components

Choose Options Below

This Rixson 327-3/4-complete heavy duty offset-hung floor closer is a concealed door closer used for exterior and interior independently hung doors with butt hinges, pocket pivots, or continuous hinges.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,063.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Offset Floor Closer Body for independently hung doors image
Buy Separately

2) Cement Case:

Cycolac Cement Case image
Buy Separately


3) Floor Plate:

327 Floor Plate image
Buy Separately


4) Arm & Track Package:

Arm & Track Package image
Buy Separately


Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Opening Degrees:

90 Degrees 90 Degrees

Overview


Suited for:
  • Exterior or interior independently hung doors

Quality:
  • 10 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Opening Degrees:

    • 90 Degrees

Product at A Glance

  • Separate and independent valves for closing speed, latch speed and backcheck.
  • Closer does not support weight of door.
  • Door hanging means (by other brands) needs to be specified to determine maximum door weight.
  • 90 degrees maximum door swing
  • For Doors over 250 lbs. Consult Factory
  • Auxiliary stop is recommended
  • Complete installation requires closer body, mortise door rail, and slide track type bottom arm
  • 1/2" extended spindle is require required for threshold applications
  • Special template may be required
  • Not available in “PH”, “DA” and hold-open
Style Floor Closer
Application Offset-Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Determined by hanging means
Door Width Up to 4'0
Door Thickness 1-3/4"

More Info


If your door is independently hung with either butt hinges or pocket pivots, this Rixson 327 floor closer is a great choice for your door. It is a 3/4” offset-hung closer that is single acting, handed and ideal for exterior and interior doors with a width up to 4 feet. The maximum door weight is determined by the door hanging means. This closer allows for a maximum door swing of  ninety degrees and is supplied with a satin chrome finish. An auxiliary stop is recommended with use of this floor closer and an extended spindle is required for threshold applications. A complete installation must include a closer body, mortise door rail, and a slide track type bottom arm. For installation, a special template may be necessary.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
