Rixson 375

Special Order Center Hung Pivot Set

Quick Product Details

  • For exterior and interior tall doors
  • Center-Hung
  • Standard Duty
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: 375

Choose Options Below

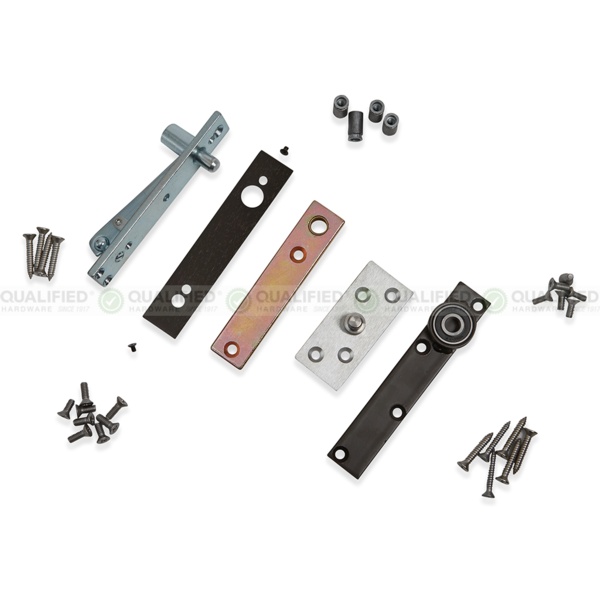

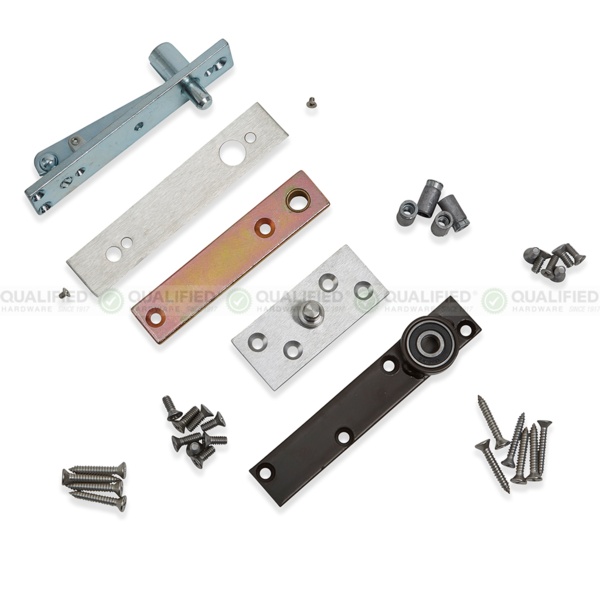

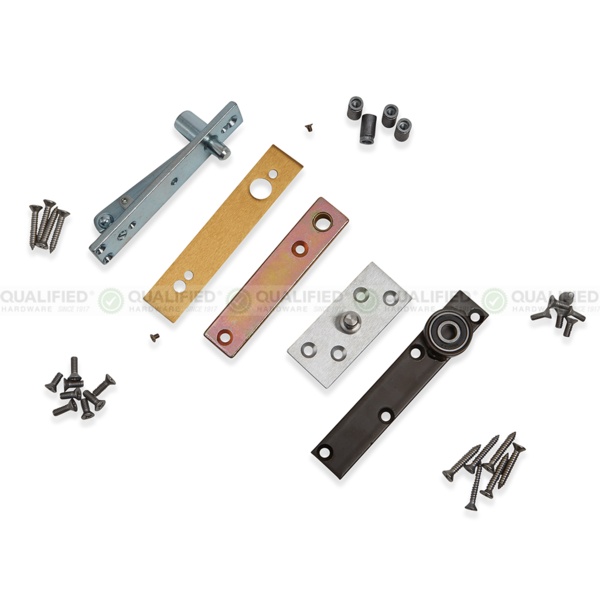

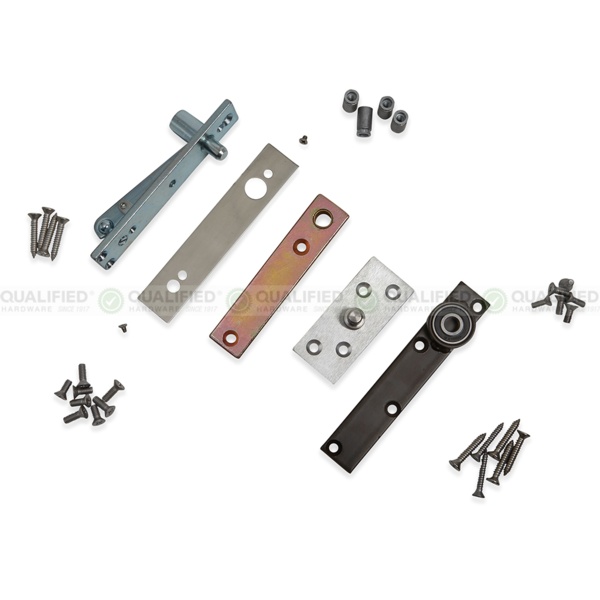

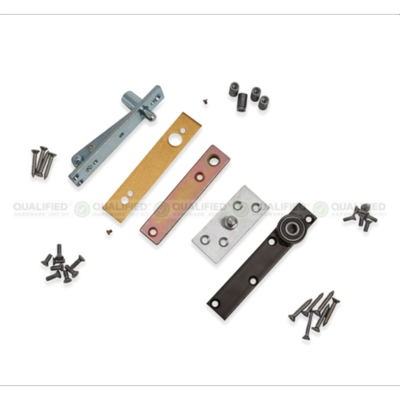

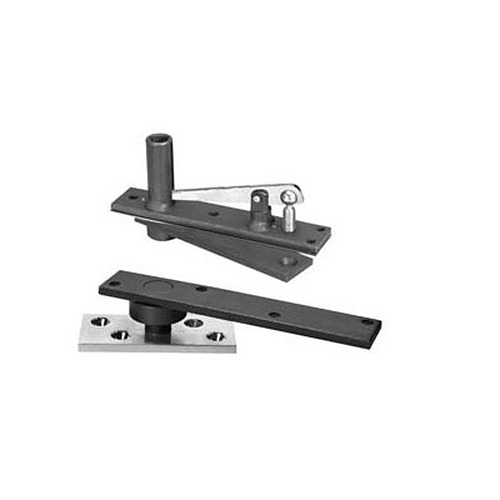

This Rixson #375 center hung pivot set includes the Rixson #345 top pivot and its bottom pivot mounts directly to the floor. It is designed for exterior and interior medium weight doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
606 - Satin Brass (US4) 606 - Satin Brass (US4)
612 - Satin Bronze (US10) 612 - Satin Bronze (US10)
613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
625 - Polished Chrome (US26) 625 - Polished Chrome (US26)
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Overview

Special order non stock item with 8 week lead time
Suited for:
  • Exterior and interior medium weight doors

Quality:
  • 2 year limited warranty

Special Orders Available:
  • All standard architectural finishes available
Contact us directly to place your special order.


Available Options: Choose Options Above

Product at A Glance

  • Includes top pivot #345
  • Bottom pivot mounts directly to the floor
  • Ideal for locations where there is a fear of dramatic building settling or for doors over 8'6" in height
  • Earthquake Tolerant
  • For Taller Doors
  • Pivot set features sealed bearings for protection against weather and debris
  • All center hung pivot sets are double-acting unless stopped by the door frame
  • Not allowed for use on fire-labeled doors and frames
  • Pivot point is centered in the thickness of door
  • Door must have radius on pivot/heel edge
  • Fully concealed when the door is closed
  • Doors do not return to center
  • Includes wood and machine screws
Style Pivot set
Grade Standard duty
Application Center-hung
Door Handing Non-handed
Door Weight Up to 500 lb
Door Size 3'8" x over 8'6"

More Info


There are many benefits to using pivot sets rather than standard hinges. It lessens the wear and tear of the door frame by greatly reducing stress, which guarantees your door and frame a longer life. Also, pivots will stay in place and will not loosen, since the screws holding the pivots in place are held in shear and not in tension. Pivots help a door swing with less friction due to the reduced tension and are therefore ideal for extremely heavy doors. Another great advantage of pivots is that they are concealed, which makes them desirable for applications where aesthetics is important.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
