Rixson 40-CWF

Special Order Double Acting Center Hung Floor Closer Body with Cold Weather Fluid

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 40-CWF

Choose Options Below

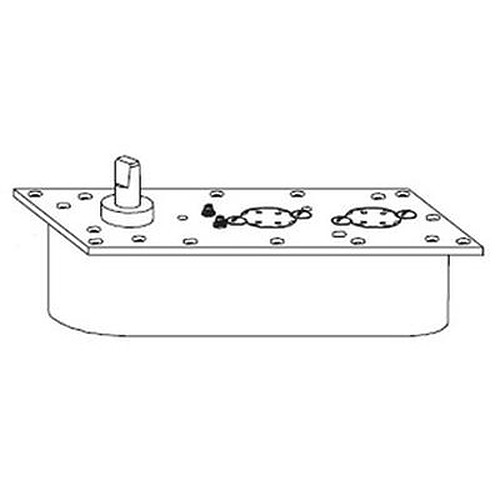

The Rixson 40-CWF double acting center hung floor closer body with cold weather fluid. When a floor closer that permits an interior door to swing in both directions is needed the Rixson 40 series double acting floor close fills the bill. For interior doors up to 300 LBS. and up to 4' 0" x 8' 6". With adjustable closing speed valves for each direction of door swing

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

NHO (Non Hold-Open)
AHO (Automatic Hold-Open) 90 degrees +$63.00
AHO (Automatic Hold-Open) 100 degrees +$63.00

Help Me Decide



No hold-open

Door does not remain open

Automatic  hold-open at 90⁰

Door remains open at 90⁰ until manually closed (requires 93⁰ swing)

Automatic  hold-open at 100⁰

Door remains open at 100⁰ until manually closed (requires 103⁰ swing)

Overview

Available Options: Choose Options Above

  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • AHO (Automatic Hold-Open) 90 degrees
    • AHO (Automatic Hold-Open) 100 degrees

More Info

  • Adjustable closing speed valves for each direction of door swing
  • Mechanism returns door to center
  • Available non hold-open (NHO) or automatic hold open (AHO) at 90 degrees or 100 degrees ( 90 degrees requires 95 degree swing)
  • Maximum door opening 103 degrees
  • Overhead stop recommended for exterior or high traffic doors
  • Uses steel cement case
  • Not allowed for fire rated doors
  • For single acting applications - #60131 applied stop required
