Rixson 501X-554-Complete

Shallow Single Acting Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior doors
  • Center-Hung
  • Standard Duty
  • Single Acting
  • Shallow
SKU: 501X-554-Complete can include all components

Starting price: $795.00 /each

Choose Options Below

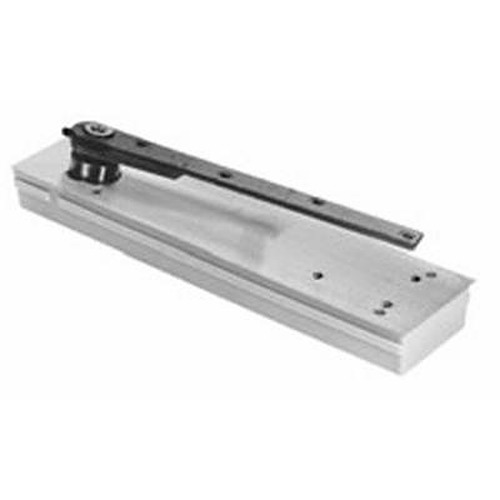

This Rixson 501X-554 complete is a center-hung, single acting floor closer. Its shallow design makes it ideal for interior doors with low/medium door traffic that have a thin slab construction for installation. An arm specifically designed to cover up adjustment screws on the face of wood doors is included in this package.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $795.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Shallow Depth Single Acting Center Hung Floor Closer Body image
Buy Separately

2) Cement Case:

50/51/52 Series Cement Case image
Buy Separately


3) Floor Plate:

50 Series Floor Plate image
Buy Separately


4) Arm Package:

Center Hung Arm Package image
Buy Separately


5) Top Pivot:

Earthquake tolerant top pivot image
Buy Separately
Buy Separately


Choose Hold Open:

Need Help Deciding?

Help Me Decide



No hold-open

Door does not remain open

Automatic  hold-open at 90⁰

Door remains open at 90⁰ until manually closed

Automatic hold open at 105⁰

Door remains open at 105⁰ until manually closed



Choose Finish:

Choose Handing:

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Select Spring Size:

Overview


Suited for:

  • Low/medium traffic interior doors with thin slab construction


Quality:

  • 2 year limited warranty

Available Options: Choose Options Above

  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • AHO (Automatic Hold-Open) 90 Degree
    • AHO (Automatic Hold-Open) 105 Degree
  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Select Spring Size:

    • 5013BC For doors to 36" wide
    • 5014BC For doors to 42" wide
    • 5015BC For doors to 48" wide

Product at A Glance

  • The backcheck option is normally supplied with this product
  • Door will swing as far as frame trim permits
  • Not allowed for doors which are fire rated
  • This product necessitates the use of an applied stop such as #60131
Style Floor Closer
Application Center-hung
Door Handing Handed
Function Single Acting
Door Weight Up to 250 lb
Door Size Up to 4'0 x 8'0"

This floor closer Rixson’s 501X-554 is designed with shallow depth to fit doors with thin slab construction. What makes this closer unique, is its center-hung arm which conceals the adjustment screws on the face of wood doors. An earthquake tolerant top pivot is an optional component as part of this complete package. If your neighborhood is prone to earthquake disasters this pivot is a must for your door. This closer can be ordered with a finish of polished brass, satin bronze, oil-rubbed bronze, polished bright chrome, or satin chrome. Pick your choice above to suit your taste. The 501X-554 is prohibited for use on fire rated doors.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Center Hung Top Pivot

Earthquake tolerant top pivot

Shallow Depth Single Acting Center Hung Floor Closer Body
