Rixson 6-536-630

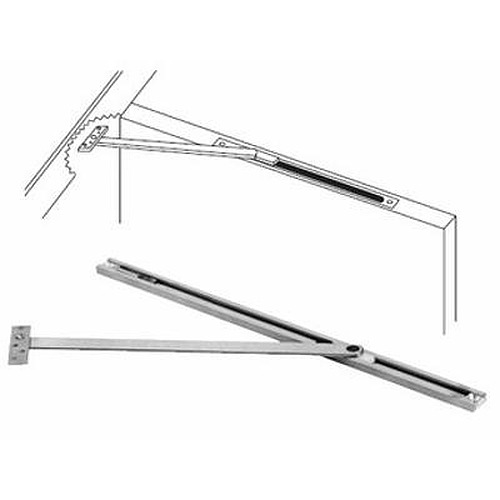

Special Order Concealed Mount Low profile Stop for Aluminum Storefront Doors

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: 6-536-630

Choose Options Below

The Rixson 6 series of standard duty concealed mount overhead stops and holders is designed for installation in aluminum door webbing. Overhead stops and holders are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Overview

Special order non stock item with 4 week lead time
  • Low-profile concealed channel.
  • Doors may be single or double acting slide track design.
  • Aluminum storefront medium weight doors with medium traffic in aluminum door webbing.
  • For doors 43 1/16"-48", hung with 3/4” offset pivots or butt hinges.
  • Non-handed.
  • Satin Stainless Steel 630 finish.

Available Options: Choose Options Above

More Info

  • Shipped as a stop only.
  • Designed for installation in aluminum door webbing
  • Heavy shock absorber spring provides 5°-7° compression before dead stop
  • Complete screw packet allows for wood or metal door and frame
  • Non-metal slide block
  • 110° maximum opening
  • 1-3/4" minimum door thickness
  • Track is 1-1/4" wide by 1/2" deep
  • UL listed for stop function

Available to order with Torx® screws and other finishes. Contact us directly to arrange for your special order.
