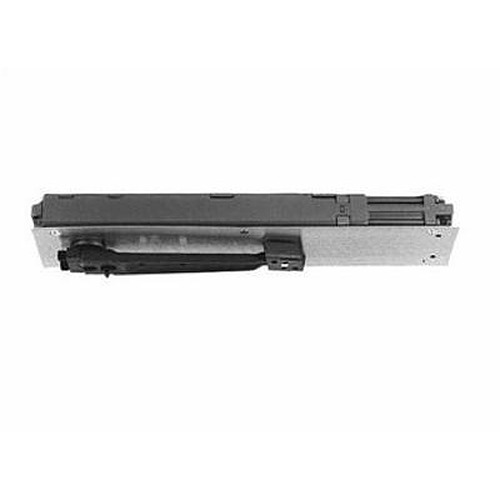

Rixson 800-Complete

Double Acting Overhead Closer

Quick Product Details

  • Overhead Closer
  • For Aluminum Doors and Frames
  • Center-Hung
  • Standard Duty
  • Double Acting
SKU: 800-Complete can include all components

Starting price: $1,035.00 /each

Choose Options Below

This Rixson 800-Complete is an overhead concealed closer that has the ability to swing in both directions, inward and outward. It is suited for exterior and interior doors that weigh up to 200 pounds with a low to medium door traffic rate and where double action is necessary.

  • In Stock!
  • Order in the next 19 hours 34 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,035.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Overhead Concealed Closer image
Buy Separately

2) Mounting Brackets:

Attaching Brackets image
Buy Separately


3) Cover Plate:

800 Series Cover Plate image
Buy Separately


4) Arm Package:

Arm Package image
Buy Separately


5) Pivot:

Center Hung Pivot for aluminum door applcations image
Buy Separately


Choose Finish:

Choose Hold Open:

Help Me Decide

No hold-open

Door does not remain open (door will swing 130 degrees in both directions)

Automatic hold-open

Door will remain open at preset degrees until manually closed

Choose Opening Degrees:

Help Me Decide

Choose Select Size:

Need Help Deciding?

Help Me Decide

Product: Interior Door Size: Exterior Door Size:
806 3’0” x 8’0” 2’6” x 8’0”
807 3’3” x 8’0” 3’0” x 8’0”
808 3’8” x 8’0” 3’6” x 8’0”

Overview


Suited for:

  • Exterior and interior doors with low to medium traffic.


Quality:

  • 2 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • AHO (Automatic Hold-Open)
  • Opening Degrees: info icon

    • 90 Degrees
    • 105 Degrees
  • Select Size: info icon

    • 806 - Ext 2'6" x 8' - Int 3' x 8'
    • 807 - Ext 3' x 8' - Int 3'3" x 8'
    • 808 - Ext 3'6" x 8' - Int 3'8" x 8'

Product at A Glance

  • For aluminum doors and frames
  • This closer should always be used with an auxiliary stop such as #60131
  • Adjustable closing speed
Style Overhead Closer
Application Center-hung
Door Handing Non-handed
Function Double-acting
Door Weight Up to 200 lb
Door Size Select size in above options
Door Thickness 1-3/4"

The Rixson 800 series overhead door closers are the #1 in door closers for installations where floor closers can not be used. They are available with many different options such as various finishes, with or without a hold-open, 90 or 105 degree opening and for doors of different sizes. This 800 model is for aluminum doors and frames in center-hung applications. It is a non-handed product that works well on right and left handed doors. The 800 series closers are double acting which enables them to swing towards the inside and outside of the building or room.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Center Hung Pivot for aluminum door applcations

Overhead Concealed Closer
