Rixson 9-336-629

Special Order Heavy Duty Surface Mount Stop

SKU: 9-336-629

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

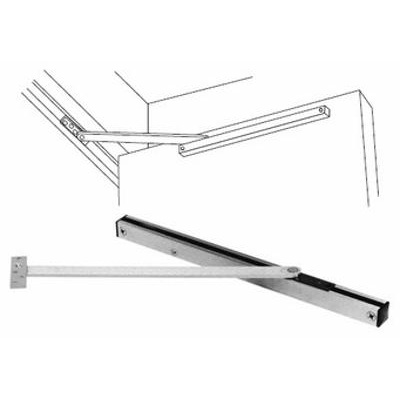

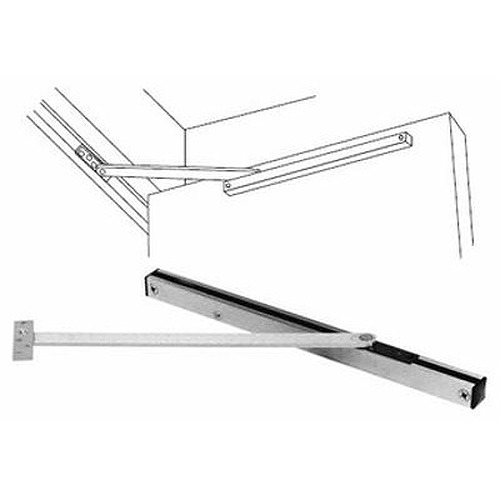

The Rixson 9 series of heavy duty surface mount overhead stops are used to protect door assemblies. The double lever arm design cuts down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. Recommended for high traffic, heavy abuse installations for interior or exterior doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Overview

Special order non stock item with 4 week lead time.
  • Overhead stop for doors 33 1/16"-38" wide doors 1-3/4" thick hung with standard 4-1/2 x 4-1/2 butts or 3/4 offset pivots
  • Non-handed.
  • Slide track design.
  • Recommended for high-traffic, heavy abuse installations.
  • 629-Polished stainless steel finish.

Available Options: Choose Options Above

More Info

  • Heavy shock absorber spring provides 5°-7° compression before deadstop
  • Complete screw packet allows for installation in wood or metal door and frame
  • Non-metal slide block and shock block
  • 110° maximum opening
  • 1-3/4" minimum door thickness
  • Track is 1-3/16" square tube
  • UL listed
