Rixson 9-426

Special Order Heavy Duty Surface Mount Holder/Stop

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9-426

Choose Options Below

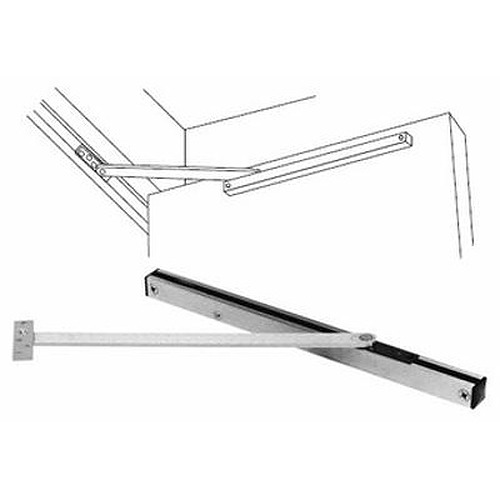

The Rixson 9 series of heavy duty surface mount overhead stops and holders are used to protect door assemblies. The double lever arm design cuts down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. Recommended for high traffic, heavy abuse installations for interior or exterior doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Overview

Non-stock Special Order with 4-6 week lead time
  • Non-handed
  • Slide track design
  • Recommended for high-traffic, heavy abuse installations

Available Options: Choose Options Above

More Info

  • Heavy shock absorber spring provides 5°-7° compression before deadstop
  • On/off knob on hold open models
  • Stop or hold open function
  • Complete screw packet allows for installation in wood or metal door and frame
  • Available in standard architectural finishes
  • Non-metal slide block and shock block
  • 110° maximum opening
  • 1-3/4" minimum door thickness
  • Track is 1-3/16" square tube
  • UL listed

Available to order with Torx® screws or with LS (less spring) option which is available for doors being used with electromechanical closers and floor closers with dead stop. Also available in other finishes. Contact us directly to arrange for your special order.


Model Selection:
Steps to selecting the correct model -

  1. Select the column with the correct hanging means for your door - either offset pivots/butt hinges OR center hung pivots
  2. Select the row with the door size range that your door falls within
  3. Select the model you need - either Hold Open or Stop
  4. Select the correct finish

* On 24-28" doors - butt hinges only.
