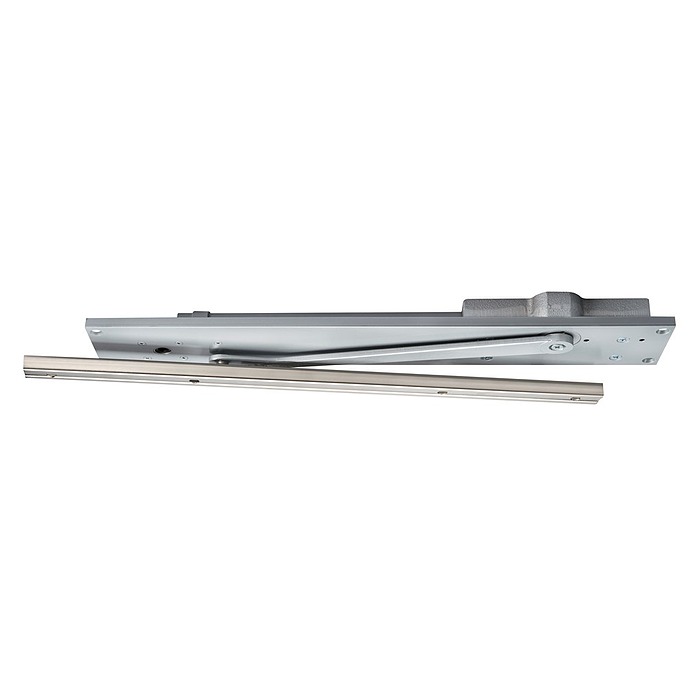

Rixson 91N-689

Offset Overhead Concealed Closer Body

Quick Product Details

  • Concealed Overhead Closer Body
  • Heavy Duty
  • Offset Hung
  • Single Acting
Price: $433.00 /each

SKU: 91N-689

Choose Options Below

The Rixson 91 overhead concealed closer is the perfect solution for openings where ANSI/BHMA Grade 1 reliability and durability are required and the aesthetic of a concealed closer is preferred. For metal, aluminum and wood doors and frames and fits in a 1-3/4" x 4" aluminum frame.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $433.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628-Sprayed Aluminum 628-Sprayed Aluminum

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.



If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Choose Spring Size:

91N-Adjustable spring 3-6
PH91-Adjustable spring 1-3 for lighter opening force

Help Me Decide

91N-Adjustable spring 3-6 for larger doors or fire rated openings.

PH91-Adjustable spring 1-3 for lighter opening force, ADA compliant.

Choose Arm:

90237 Right hand Arm + $106.00 90237 Right hand Arm +$106.00
No Arm needed No Arm needed
Left hand Arm 90236 + $106.00 Left hand Arm 90236 +$106.00

Choose Track:

90254 Hold Open Track Assembly + $85.00 90254 Hold Open Track Assembly +$85.00
90255 Non Hold open Track + $70.00 90255 Non Hold open Track +$70.00
No Track Needed No Track Needed

Choose Wood Frame Clip:

90257 Wood Frame Clip + $97.00 90257 Wood Frame Clip +$97.00
No Wood Frame Clip Needed No Wood Frame Clip Needed

Overview


Quality and Safety:
  • ANSI/C05031/C05041.
  • A156.4 Grade 1 certified.
  • UL / cUL listed for use on fire rated doors.
  • UL10C listed for positive pressure fire test. Ratings are 3 hours for hollow metal door and 1-1/2 hour rated wood doors.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Spring Size: info icon

    • 91N-Adjustable spring 3-6
    • PH91-Adjustable spring 1-3 for lighter opening force
  • Arm:

    • 90237 Right hand Arm
    • No Arm needed
    • Left hand Arm 90236
  • Track:

    • 90254 Hold Open Track Assembly
    • 90255 Non Hold open Track
    • No Track Needed
  • Wood Frame Clip:

    • 90257 Wood Frame Clip
    • No Wood Frame Clip Needed

Product at A Glance

  • Closer body only
  • Adjustable spring size 3-6 for larger doors or fire rated openings specify 91.
  • Adjustable spring 1-3 for lighter opening force specify PH91 – ADA compliant.
  • Used on exterior and interior doors with hanging means by others: 3/4" offset pivots or 4-1/2" x 4-1/2" butt hinges.
  • Heavy-duty cast iron closer body.
  • All weather fluid accommodates a temperature range from 40° to 150°F.
  • Product shipped with all wood and all metal screws.
  • Separate and independent closing-speed, latch-speed and backcheck valves.
Style Complete Overhead Concealed Closer
Grade Heavy Duty
Application Offset Hung
Function Single Acting
Hold-open Non hold-open
Door Size - Interior: 4'6"- 8'0"
- Exterior: 4'0"- 8'0"
Door Weight Maximum 250 lbs.
Frame Size Minimum 1-3/4" x 4"
