Rixson 994M-689

Special Order Armature Wall Mount Electromagnetic Holder

Quick Product Details

  • Electromagnetic Holder
  • Long Armature
  • Wall Mounted
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 994M-689

Choose Options Below

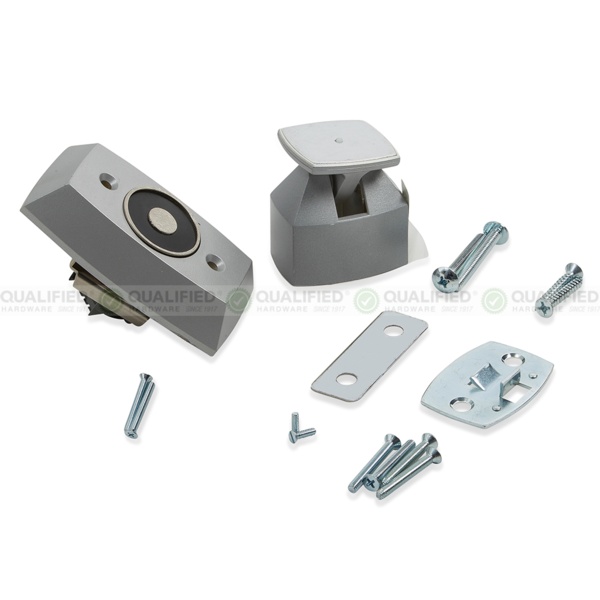

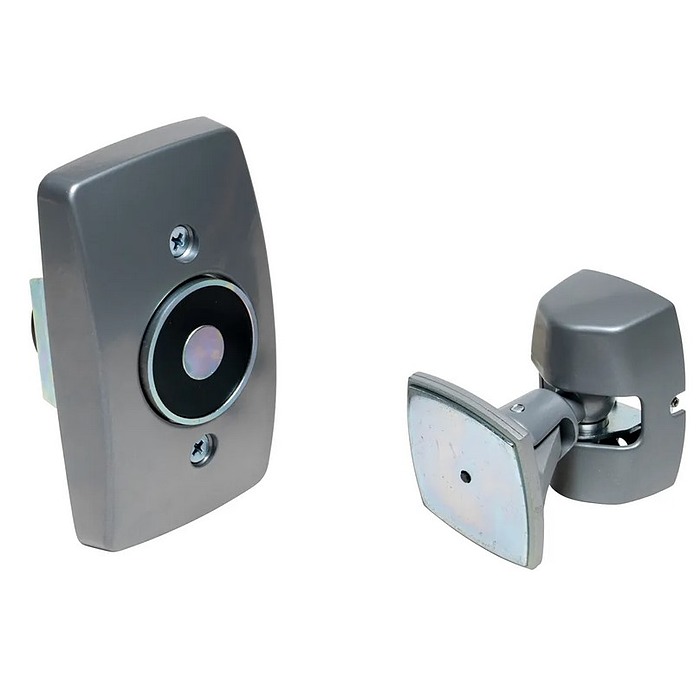

This Rixson 994M is a wall mounted electromagnetic holder that has a holding force of twenty-five to forty pounds and a total projection of 3-3/4". This product is generally used to keep smoke barrier doors open unless they are released by a connected smoke alarm system or any other other remote switching device. Made for wood doors.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

628-Sprayed Aluminum 628-Sprayed Aluminum

Overview


Quality:

  • Meets ANSI/C00011 standards
  • UL/ULC listed
  • 2 year limited warranty

Mounting Requirements:
  • 2” X 4” X 1-3/4” outlet box
  • Wall must be properly reinforced and outlet box adequately fastened.

Special Orders Available:
  • Available in more unlisted finishes
Contact us directly to place your special orders.


Available Options: Choose Options Above

Product at A Glance

  • Designed for use with self-closing fire and smoke barrier doors
Style Electromagnetic Holder
Application Wall mount
Holding Force 25 - 40 lbs.
Total Projection 3-3/4"
Wiring Concealed
Voltage Tri-volt: 120VAC, 24VAC/DC, 12VDC

More Info


​Rixson 994M is a UL/ULC listed product that meets ANSI/C0011 standards and is listed by California State Fire Marshal. This holder is designed to hold smoke barrier doors open until they are remotely released by a smoke detector or similar switching device. This  holder carries a holding force of 25-40 pounds. It has a long armature (door portion) whose total projection is 3-5/8”. Mounting requires a 2” by 4” by 1-3/4” outlet box that is adequately fastened on a properly reinforced wall.
