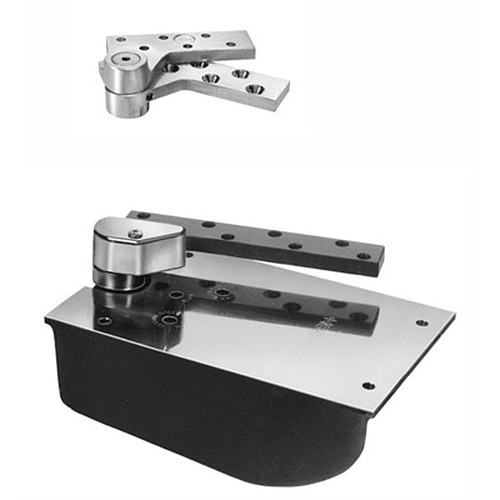

Rixson Complete L27-90N-2-1/4"-613

Complete 3/4" Offset Closer for 2-1/4" Thick Lead Lined Doors

Quick Product Details

  • Complete Floor Closer Kit
  • For commercial lead-lined or heavy exterior and interior doors
  • 3/4" Offset Hung
  • Single Acting
  • Non Hold Open
  • Dark Bronze 613 Finish
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: Complete L27-90N-2-1/4"-613

Choose Options Below

Rixson L27 Extra heavy weight/duty/Lead Lined. doors.WithThe heavy duty bottom arm, top pivot pivot are designed to straddle lead lining in the door. For 2-1/4" thick door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Opening Degrees:

90 Degrees 90 Degrees

Overview


Special order non stock item with 6 week lead time
  • Lead lined or heavy exterior and interior 2-1/4" thick doors with high door traffic.
  • Complete with non hold closer,top pivot, arm, floor plate and cement case.
  • Single Acting
  • Handed
  • Weight up to 1500 lbs.
  • For door width up to 4'0" Door size & weight guidelines are determined using the appropriate number of intermediate pivots


Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Opening Degrees:

    • 90 Degrees

Product at A Glance

Style Floor closer
Application Offset-Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 1500 lbs
Door Width Up to 4'0
Door Thickness 2-1/4" thick

More Info


Lead-lined doors are made to help scatter gamma and X-rays and are therefore used often in medical facilities, where the use of these rays are necessary, to keep the radiation from spreading and causing unnecessary damage.Doors that are lead-lined are usually extremely heavy and the Rixson L27 3/4” offset is designed specifically for those. This closer can carry doors that weigh up to one thousand, five hundred pounds. The heavy-duty bottom arm and top pivot included with the purchase of the complete L27 closer are constructed with spaced screw holes to straddle the lead-lining in the doors. Door is set with the ability to swing up to ninety degrees and has a built in selective hold-open which can be manually adjusted to have the hold-open functioning or not.
