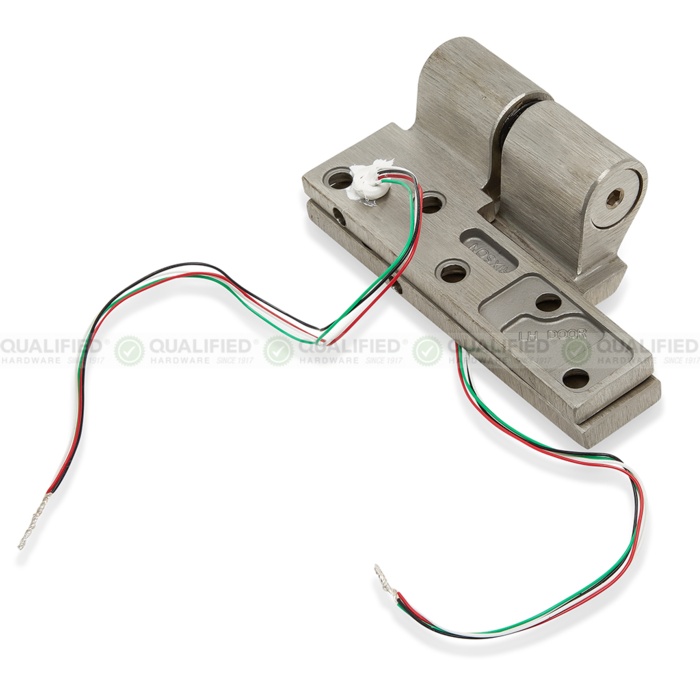

Left Hand Shown







Rixson EFM19-613

Special Order Electrified Fire Rated 3/4" Offset Intermediate Pivot

Quick Product Details

  • Intermediate Pivot
  • Offset Hung
  • Electrified
  • Fire Rated
  • Eight Wire
SKU: EFM19-613

Price: $695.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This EFM19-8 is an electrified 3/4" offset intermediate pivot specifically used for power transfer on fire rated doors. It carries no load and maintains the alignment of the door. Eight conductor 24 gauge wire.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $695.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

613 Dark Bronze 613 Dark Bronze

Overview

Special order non stock item with 4 week lead time




Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Not load-bearing
  • Maintains door alignment
  • Four conductors
  • 24-gauge wire is rated at two amps for low voltage, Class II wiring applications
  • The door and jamb portion are assembled in the factory and can therefore not be separated
  • Door edges must be beveled 1/8” in 2”
  • For use on fire rated doors
  • Includes wood and machine screws
Style Intermediate Pivot
Application Offset-Hung
Offset 3/4"
Door Handing Handed

More Info


This Rixson EFM19-4 Electrified intermediate pivot is used for power transfer on fire-rated offset-hung doors. Includes four conductors. Both the door and jamb portion are assembled in the factory and can not be separated. Door edges shall be beveled every 1/8 of an inch in 2 inches. This intermediate pivot bears no load and helps to keep the door aligned
