Rixson EH28S-587-105-626

Special Order Center Hung Complete Floor Closer for Power Transfer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EH28S-587-105-626

Choose Options Below

The Rixson EH28S complete floor closer povides power transfer through closer spindle. Low voltage, Class II wiring (2 wire, 18 gauge only). Special side load arm for 1-3/4" thick doors. A closer package includes everything that you need for a new installation.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Special order non stock item with 4 week lead time.
  • Complete floor closer for power transfer.

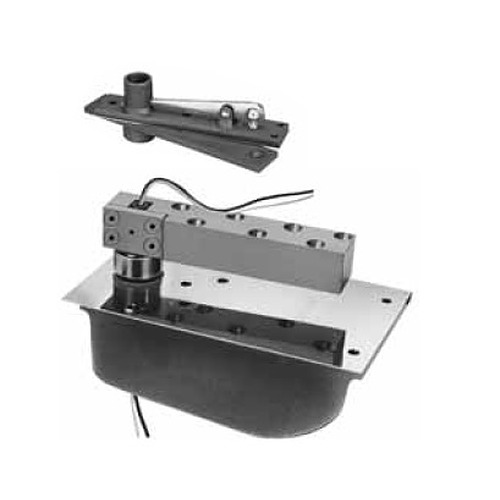

  • Includes the H340 top pivot, floor closer body, cement case,587 side load arm for 1-3/4" doors and floor plate.
  • Satin chrome finish.
  • Side load arm for 1/34" thick doors.
  • Selective hold open (SHO) at 105 degrees.
  • Single acting, handed.
  • Doors weight to 500 lbs.
  • Sizes up to 4'0" x 8'6".

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Thrust bearing for greater load capacity.
  • Built-in positive dead stop at 100° prevents door from swinging beyond the opening degree.
  • Separate and independent valves for closing speed, latch speed and backcheck.
  • Not allowed for fire rated doors.
