Rixson EH340-626-ELYNX-12WIRE

Special Order Center Hung Electrified Top Pivot

Quick Product Details

  • Electrified Top Pivot
  • Center-Hung
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EH340-626-ELYNX-12WIRE

Choose Options Below

This Rixson EH340-ELYNX-12 WIRE electrified center-hung top pivot is a heavy duty top pivot used for power transfer. It is completely concealed when the door is closed. It is a thru-wire pivot, supplied with 12 wires at 24 gauge.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

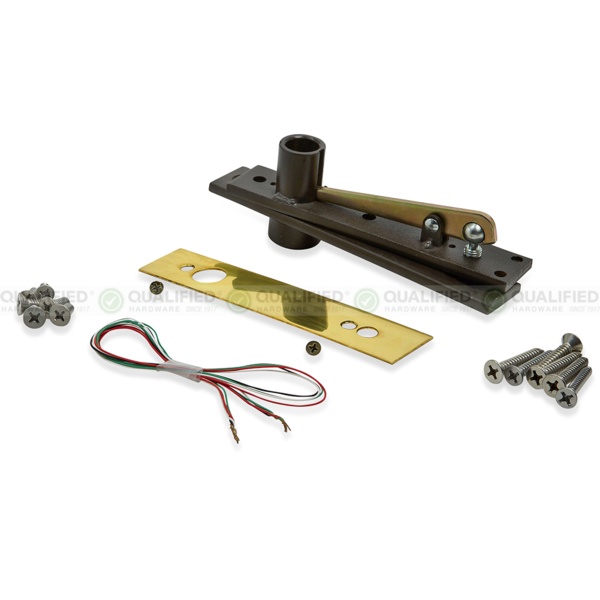

605-Polished Brass 605-Polished Brass
626-Satin Chrome 626-Satin Chrome

Overview

Special order non stock item with 4 week lead time


Available Options: Choose Options Above

Product at A Glance

  • Fully concealed when the door is closed.
  • Walking-beam type pivot.
  • 11/16” diameter pivot pin with 3/4” engagement.
  • Oil-impregnated sintered bronze bearing.
  • Supplied with 12 wires at 24 gauge.
  • Wires are stranded and color coded for easy installation.
  • Wires are rated at 3 amps continuously, used for Class II wiring applications.
  • Includes wood and machine screws.
Style Electrified Top Pivot
Grade Heavy Duty
Application Center-hung
Door Handing Non-handed
ElectroLynx(R) Connectors Plug-in connectors, with easy color coded wire system, eliminate matching wires

More Info


This Rixson EH340 has the same qualities as the H340 center-hung top pivot, but in addition it is electrified for power transfer. It includes 12 wires at 24 gauge which are rated at 3 amperes continuously and are used for Class II wiring applications. To make the installation of the pivot simpler, the wires are stranded and color coded. This top pivot is a walking beam type pivot with 11/16” diameter pivot pin and 3/4” engagement.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
