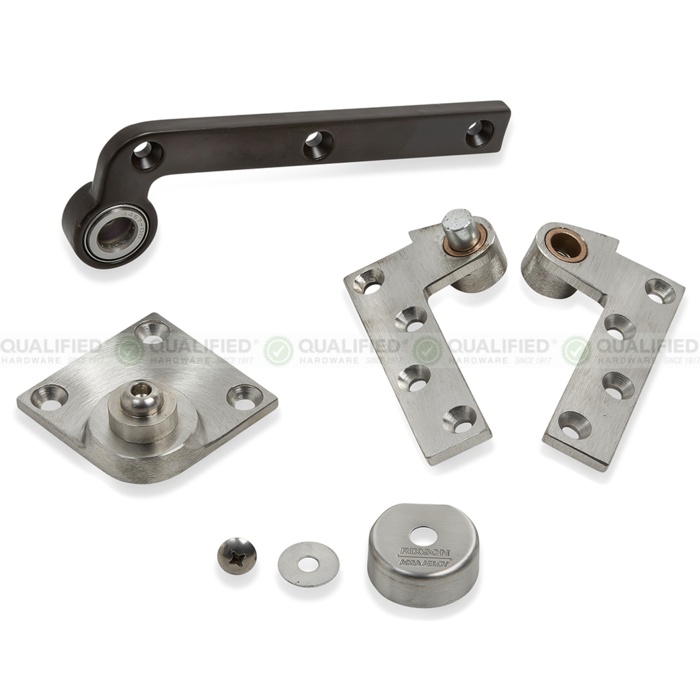

Left Hand Shown

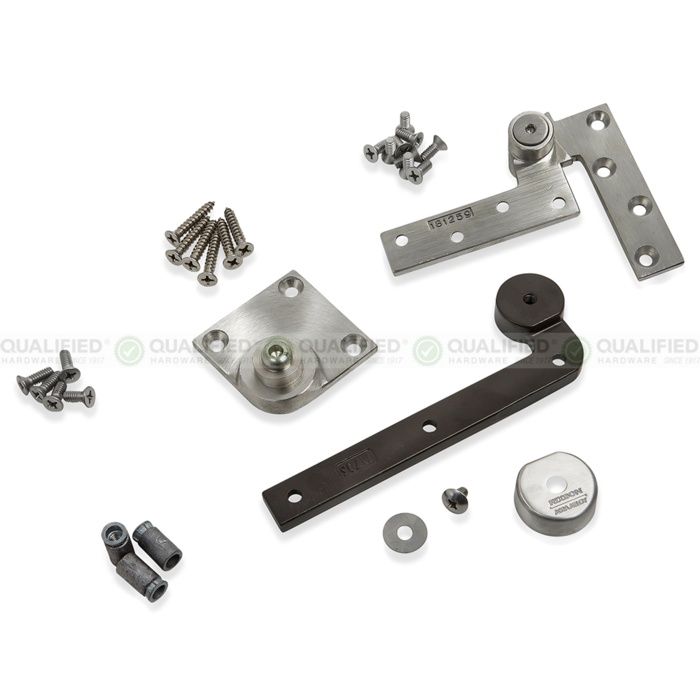

Right Hand Shown

Rixson F117-613

Special Order 3/4" Offset Pivot Set 3HR Fire Rated

Quick Product Details

  • Pivot Set
  • Offset Hung
  • Light Duty
  • Fire Rated
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: F117-613

Choose Options Below

This Rixson F117-613 is for fire rated door assemblies up to three hours and includes the F180 top pivot. An intermediate pivot such as FM19 is required by UL . For use with interior doors weighing up to 300 lbs.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door


Choose Finish:

613 Dark Bronze 613 Dark Bronze


  Special order non stock item with 4 week lead time
Suited for:
  • Fire rated interior doors up to 300 lbs.


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Includes standard top pivot F180
  • For fire rated assemblies up to three hours and intermediate pivot such as FM19 is required by UL.
  • Doors 60” in height use one intermediate pivot and each additional 30” requires another intermediate pivot
  • 3/4” offset (measured from centerline of pivot to face of door)

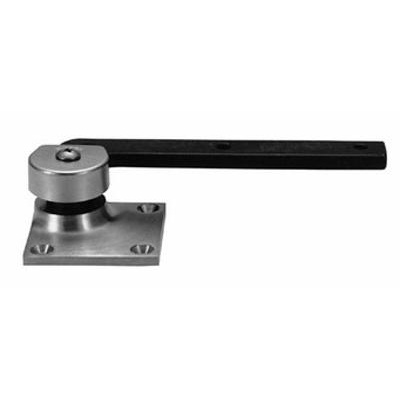

  • The bottom pivot is mortised into floor
  • Door edges must be beveled 1/8” in 2”
  • Door will swing 180 degrees (trim permitting)

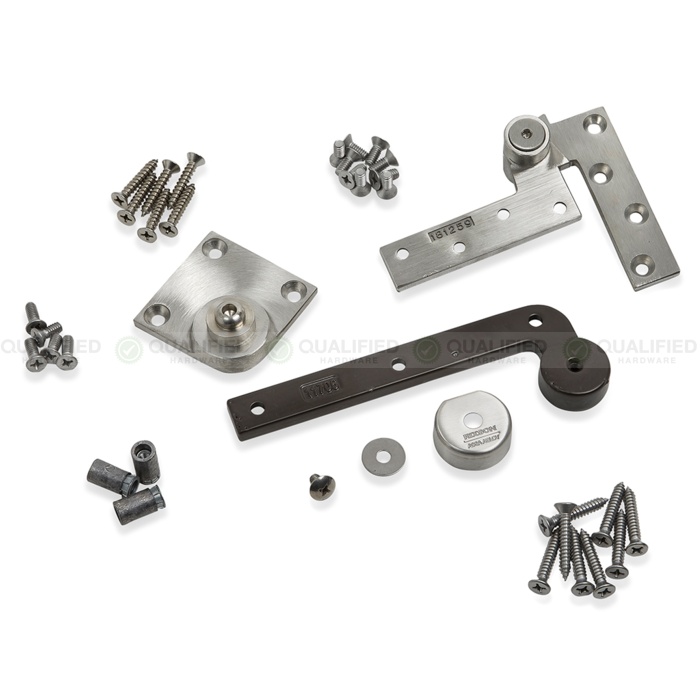

  • Includes wood and machine screws
Style Pivot Set
Application Offset-Hung
Offset 3/4"
Door Handing Handed
Door Weight Up to 300 lbs.
Door Width Up to 3'6"

More Info

First of all, all parts of the door assembly which includes the wall, frame and door and door hardware must be fire-rated. Another requirement is that the door must be self-closing. It cannot have a hold-open feature which makes manual power necessary to close the door. This is very important because if a door is left open, fire cannot be contained. Similarly, the door has to latch into the frame automatically when closed and remain latched until manually opened. The F117-3/4 is labeled for three hours.
