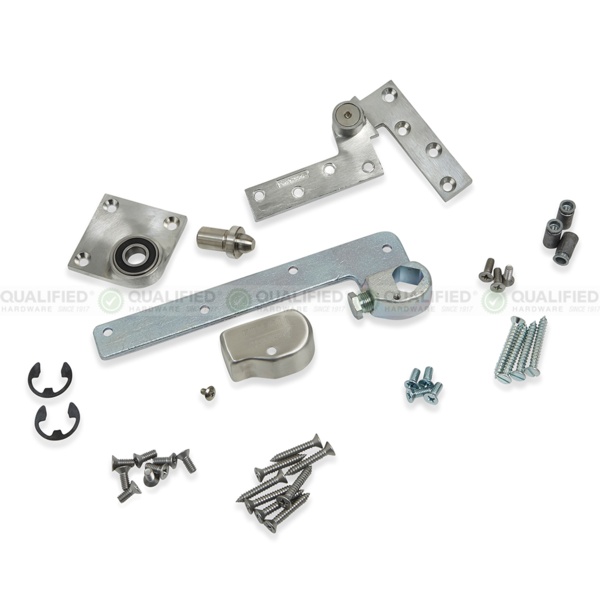

Left Hand Shown




Right Hand Shown

Rixson F147-26D

Special Order Fire Rated Offset Pivot Set

Quick Product Details

  • Fire Rated Pivot Set
  • Offset Hung
  • Standard Duty
  • For exterior and interior doors
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: F147-26D

Choose Options Below

This Rixson F147 3/4" fire rated offset pivot set is for interior and exterior doors weighing up to 600 pounds. A standard F180 top pivot is included with this pivot set. The pivot allows the door the ability to swing 180 degrees as long as the trim permits.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

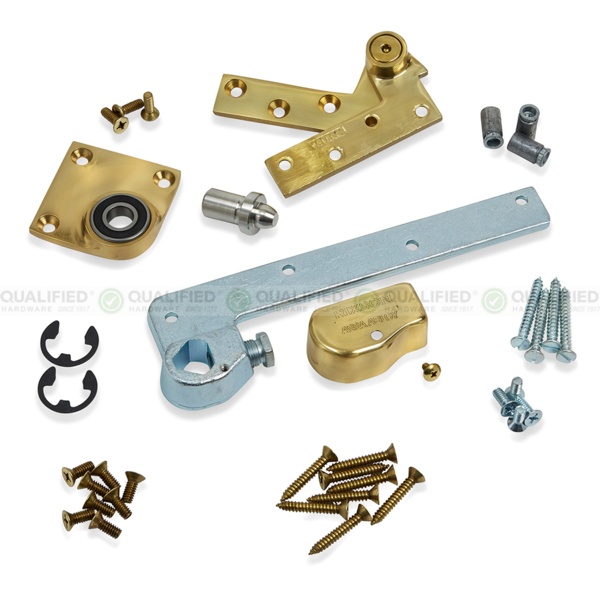

605 - Polished Brass (US3) right HAND SHOWN 605 - Polished Brass (US3)

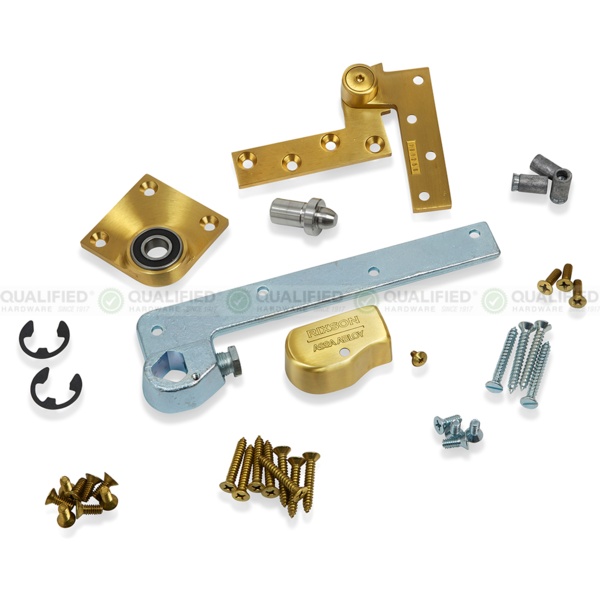

606 - Satin Brass (US4) right hand shown 606 - Satin Brass (US4)

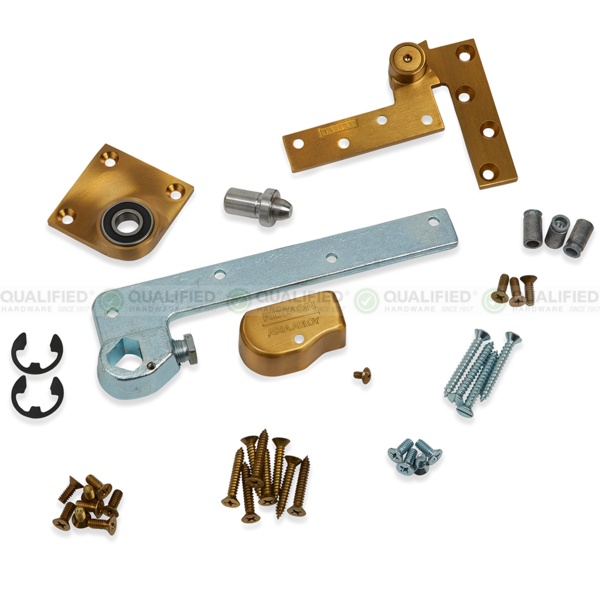

612 - Satin Bronze (US10) right HAND SHOWN 612 - Satin Bronze (US10)

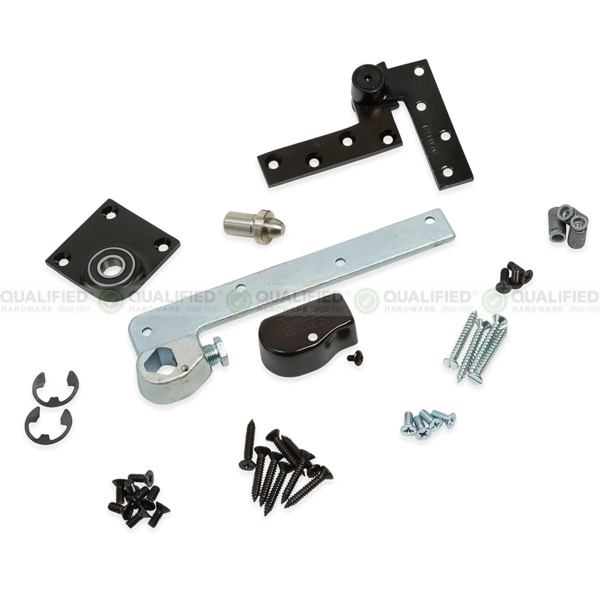

613 - Oil Rubbed Bronze (US10B) right HAND SHOWN 613 - Oil Rubbed Bronze (US10B)

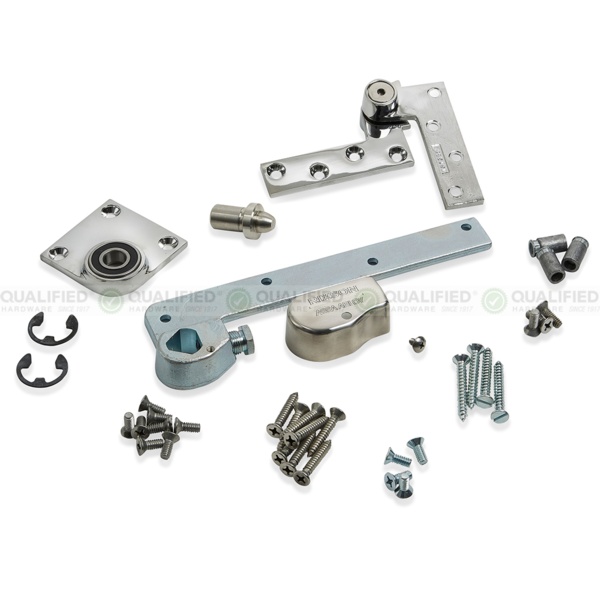

629 - Polished Chrome right HAND SHOWN 629 - Polished Chrome

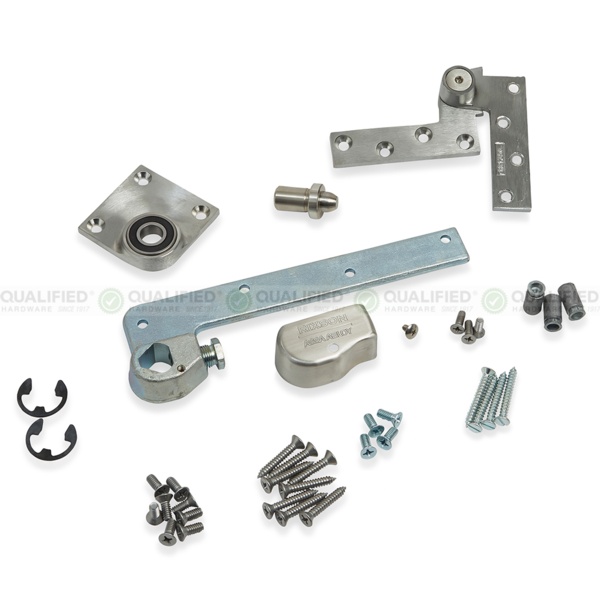

626 - Satin Chrome (US26D) right HAND SHOWN 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Special order non stock item with 6 week lead time
Suited for:

  • Exterior and interior doors weighing up to 600 pounds.


  • 2 year limited warranty


Available Options: Choose Options Above

Product at A Glance

  • Includes standard top pivot #F180
  • Uses the same arm and cap as the #27 floor closer
  • Intermediate pivot such as FM19 required (order separately)
  • Doors 60” in height use one intermediate pivot and each additional 30” requires another intermediate pivot
  • Bottom pivot gets mounted directly to floor
  • Door edges must be beveled 1/8” in 2”
  • Door will swing 180 degrees (trim permitting)
  • Includes wood and machine screws
  • Door weight and size guidelines can be determined using the appropriate amount of intermediate pivots
Style Fire Rated Pivot Set
Grade Standard Duty
Application Offset-Hung
Offset 3/4" (measured from centerline of pivot to face of door)
Door Handing Handed
Door Weight Up to 600 lbs.
Door Width - Exterior doors up to 3'0"
- Interior doors up to 3'6"

More Info

Are you having trouble with your heavy, commercial doors? Are they sagging or swinging with resistance? Is your door frame bending out of shape? If yes, and your doors are hung with hinges, these are the laws of physics working against you. Because hinges are held in tension, it creates a lot of stress which is placed on the door frame and results in door failure and other problems as mentioned above. Rixson will provide you with the key to fix these malfunctions: Rixson pivots. Pivots are designed to work along with the laws of physics  to make the hanging of your door satisfactory in every way, so place your order of Rixson pivots now and see magnificent results.
