Rixson F180-1-1/2

Special Order Fire Rated 1-1/2 Offset Top Pivot

Quick Product Details

  • Top Pivot
  • Offset Hung
  • Fire Rated
  • 1-1/2" Offset
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: F180-1-1/2

Choose Options Below

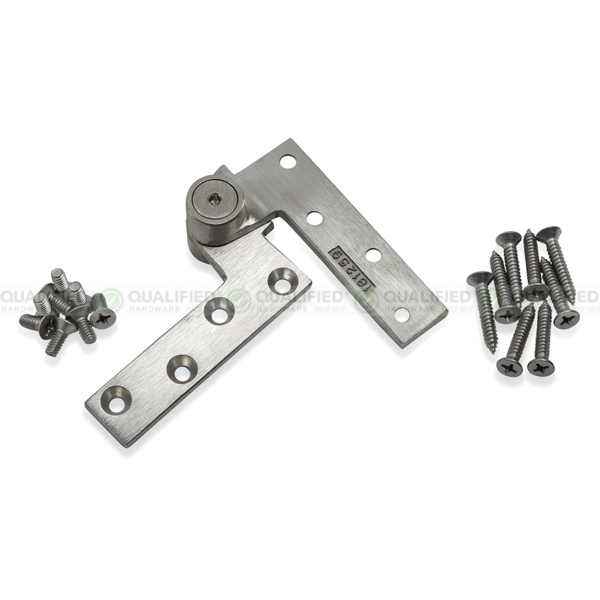

This Rixson F1801-1/2" fire rated offset-hung top pivot is especially made with ferrous material so that it can be used for fire rated assemblies. This top pivot is optional for most offset pivot sets and floor closers. It is full mortise.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

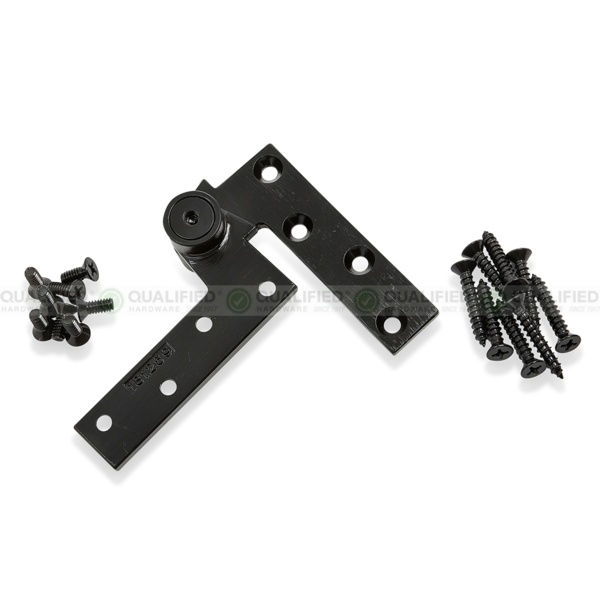

613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Overview

Special order non stock item with 6 week lead time

Available Options: Choose Options Above

Product at A Glance

  • Optional top pivot for most offset-hung pivot sets and floor closers
  • Full mortise
  • 3/4” offset (measured from centerline of pivot to face of door)
  • Oil-impregnated sintered bronze bearing
  • Ferrous material for fire rated applications
  • Includes wood and machine screws
Style Top pivot
Used with 1-1/2" offset-hung pivot sets and floor closers in fire rated applications
Application Offset-Hung
Offset 1-1/2" (measured from centerline of pivot to face of door)
Door Handing Non-handed

More Info


The Rixson F180 -1-1/2" is an offset-hung top pivot that is optional for almost all offset-hung pivot sets and floor closers. It is made of ferrous material (contains iron) and may be used on fire rated doors. This top pivot gets fully mortised into the top of the door and into the frame. Bearing is of oil-impregnated sintered bronze.
