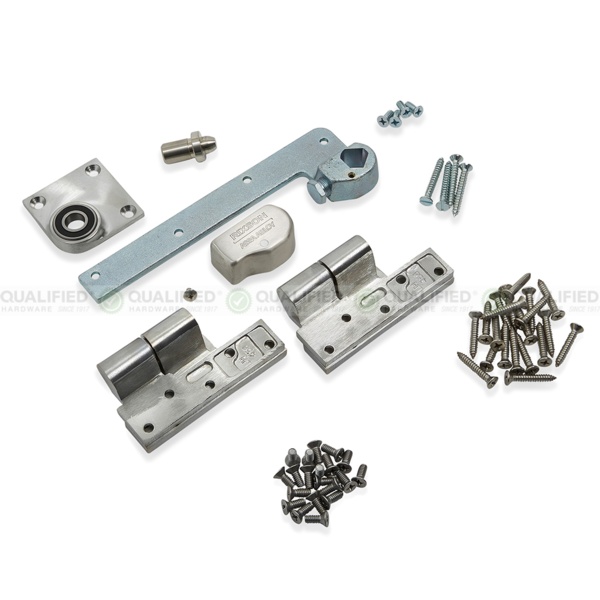

Left Hand Shown







Right Hand Shown

Rixson F547-626

Special Order Fire Rated Offset Pivot Set for a Topless Frame

Quick Product Details

  • Pivot Set
  • Offset Hung
  • Fire Rated
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: F547-626

Choose Options Below

This Rixson F547Fire rated offset pivot set is used for doors with a topless frame such as arch top doors or doors that use an offset arm with Rixson's 0608 or 0700 overhead concealed closers. The pivot set includes two FM190 side jamb pivots and the 147 bottom pivot but it does not include a top pivot.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

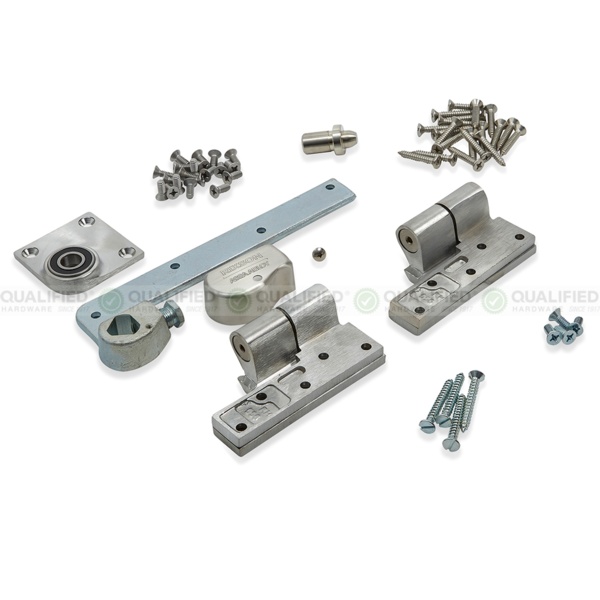

Satin Chrome - 626 Right Hand Shown Satin Chrome - 626

Overview

Special order non stock item with 4 week lead time
Suited for:

  • Fire rated
  • Exterior and interior topless frame doors weighing up to 500 pounds.




Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Includes 2 FM190 side jamb pivots and 147 bottom pivot, no top pivot
  • For doors over 90” in height order an additional M190 intermediate pivot
  • 3/4” offset (measured from centerline of pivot to face of door)
  • Bottom pivot mounts directly to floor into floor
  • Door edges must be beveled 1/8” in 2”
  • Door will swing 180 degrees (trim permitting)
  • Non-ferrous base metal
  • Includes wood and machine screws
Style Pivot Set
Application Offset-Hung
Offset 3/4"
Door Handing Handed
Door Weight Up to 500 lbs.
Door Width Up to 40"
Door Height Up to 90"

More Info


This fire rated offset F547 pivot set is designed for topless door frames such as arch top doors or doors using an offset arm with Rixson overhead floor closers such 0608 and 0700. Two FM190 side jamb pivots and a 147 bottom pivot are included in this pivot set, however, a top pivot is not included. This pivot set can carry up to five-hundred pounds of door weight, and will fit doors with a width of forty inches and a height of ninety inches.
