Rixson FL27-105N-COMPLETE-693

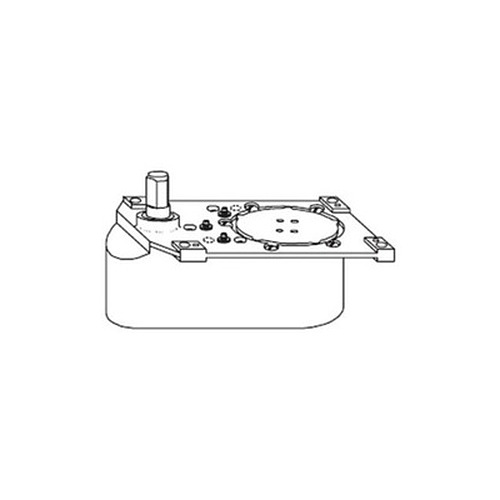

Special Order Fire Rated Floor Closer for Fire Rated Lead Lined Door

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: FL27-105N-COMPLETE-693

Choose Options Below

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish..

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

Finish 693 Black Painted Finish 693

Overview

Special Order item with 8-12 week lead time
  • With 105 degree non-hold open
  • Single Acting
  • Handed
  • Exterior or Interior Doors
  • For Lead-Lined/Heavy/High Traffic Doors
  • For Fire-Rated Doors
  • Weight up to 1500 lbs.
  • For door width up to 4'0" Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

More Info

  • Standard for 1-3/4" doors
  • Thrust bearing for greater load capacity
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Uses cast iron cement case
  • Vertical door adjustment
  • Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot
  • Package includes Closer Body, Bottom Arm, Top Pivot, Floor Closer Plate, Cement Case
