Right Hand Shown



Rixson FM19-613

Special Order Fire Rated 3/4" Offset Intermediate Pivot

Quick Product Details

  • Intermediate Pivot
  • Offset Hung
  • Standard Duty
  • Fire Rated
SKU: FM19-613

Price: $382.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

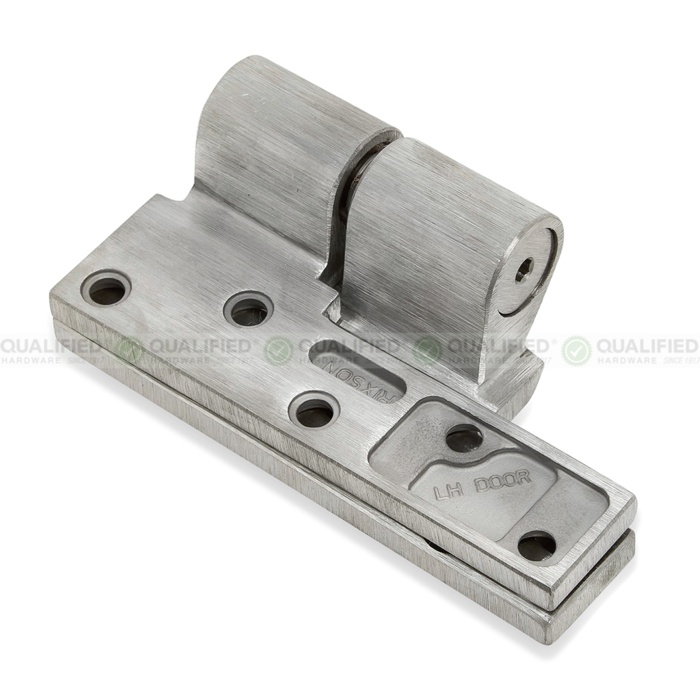

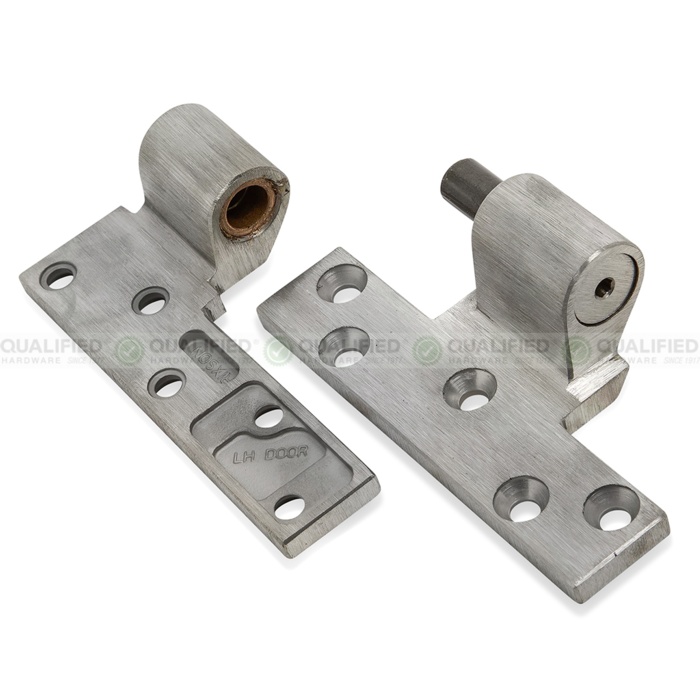

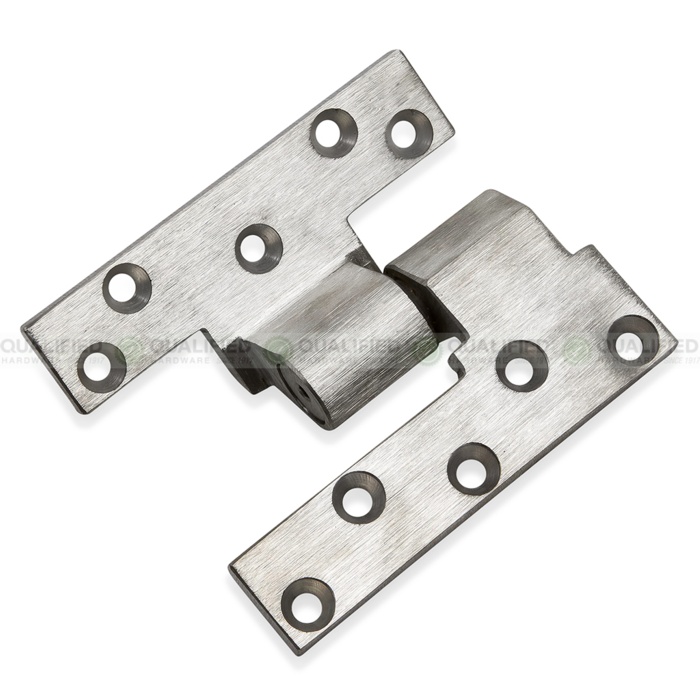

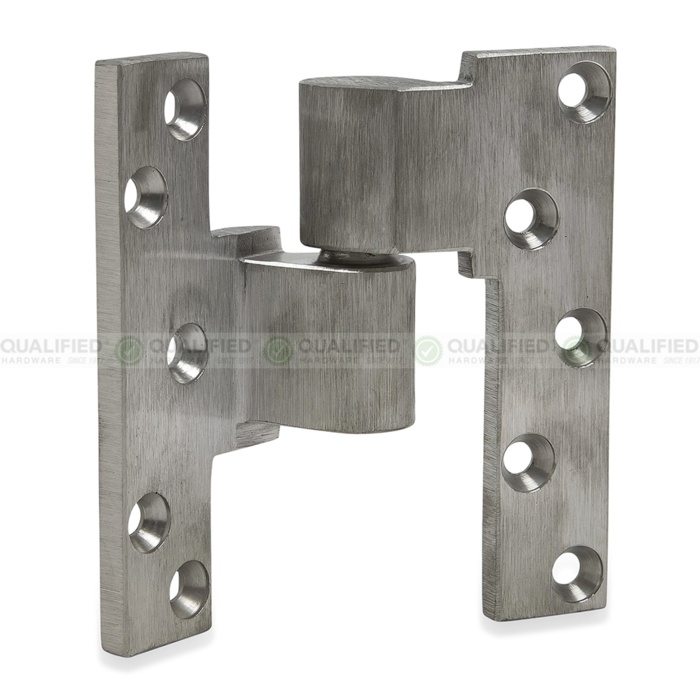

This Rixson FM19 3/4" offset fire rated intermediate pivot is made of ferrous base metal for use on labeled fire door assemblies. It is non load-bearing and maintains door alignment.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $382.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

613 Dark Bronze 613 Dark Bronze

Overview

Special order non stock item with 4 week lead time
Suited for:
  • Offset applications on labeled fire doors

Quality:
  • 2 year limited warranty


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Full mortise
  • Aids for the installation of floor closers and pivot sets
  • Doors up to 60 inches high should  use one intermediate pivot and each additional 30 inches warrants another intermediate pivot
  • Ferrous base metal for use on labeled fire door assemblies
  • Non load-bearing
  • Maintains door alignment
  • Door edges must be beveled 1/8” in 2”

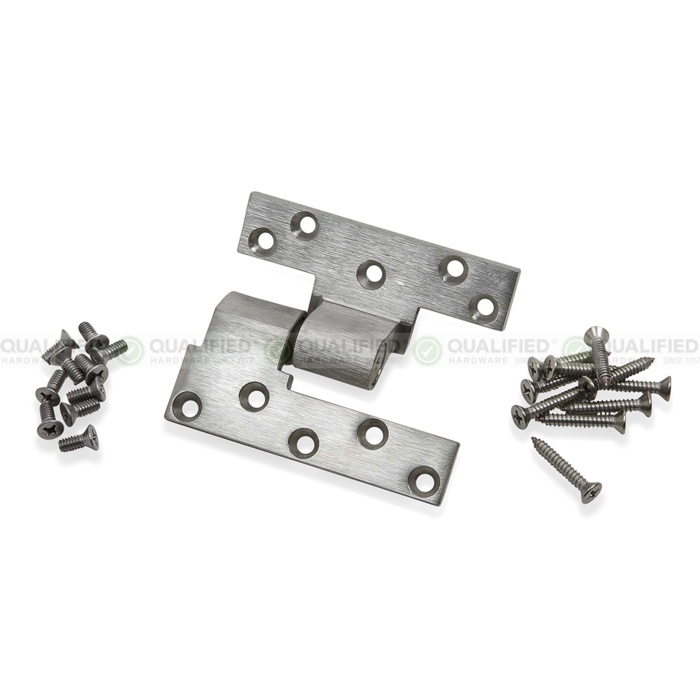

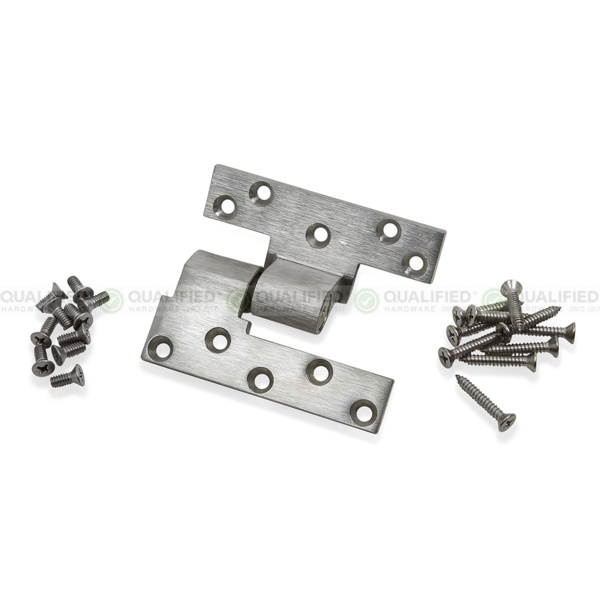

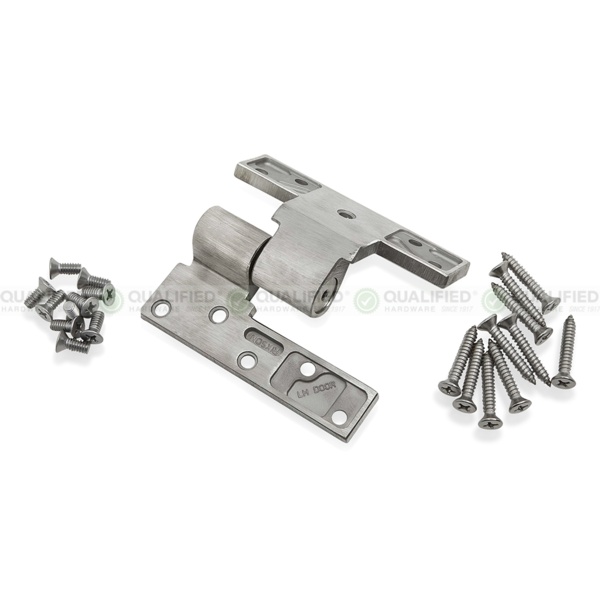

  • Includes wood and machine screws
Style Intermediate Pivot
Application Offset-Hung
Offset 3/4" (measured from centerline of pivot to face of door)
Door Handing Handed

More Info


In order for door hardware to be fire rated it must be made of steel or ferrous material which contains iron, because any other non-ferrous material will melt in high temperatures. This Rixson FM19 intermediate pivot is constructed of ferrous material for use on labeled fire door assemblies. It is for use on offset-hung applications. Intermediate pivots are recommended to help support doors on installations with either pivot sets or floor closers.
