Left Hand Shown





Right Hand Shown

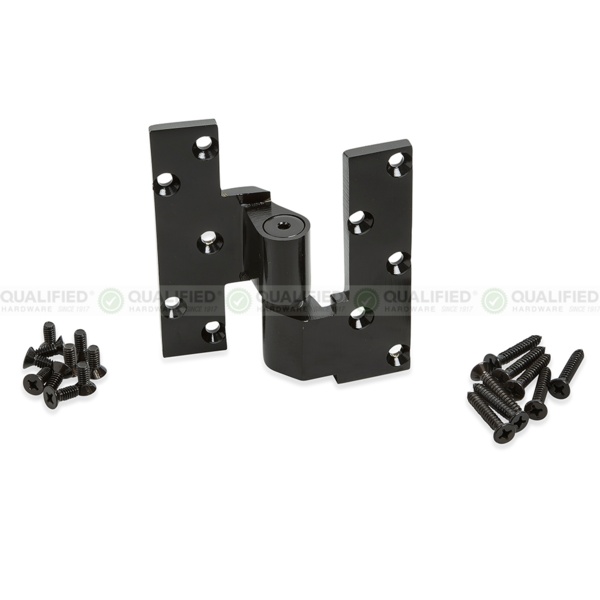

Rixson FML19-693

Special Order Fire Rated Offset Intermediate Pivot for Lead Lined Doors

Quick Product Details

  • Intermediate Pivot
  • Offset Hung
  • Full Mortise
  • Heavy Duty
  • For lead-lined exterior and interior doors
  • For Fire Rated doors
Price: $516.00 /each

SKU: FML19-693

Choose Options Below

This FML19 offset intermediate pivot is designed for fire rated, heavy, lead-lined doors or high traffic doors.

  • Stock Item
  • Order in the next 36 hours 6 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $516.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

693 - Painted Black Finish 693 - Painted Black Finish

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Suited for:

  • Lead-lined heavy doors with high door traffic
  • Fire Rated doors


  • 2 year limited warranty

Special Orders Available:
  • Available for door thicknesses of 2", 2-1/4", 2-1/2" and 3"
  • More unlisted finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Screw holes spaced to straddle lead lining
  • Full mortise
  • Load-bearing
  • Maintains door alignment
  • Aids in the installation of pivots and floor closers
  • Made with non-ferrous base metal
  • Includes  wood and machine screws
Style Intermediate Pivot
Grade Heavy Duty
Application Offset-Hung
Offset 3/4"
Door Handing Handed
Door Thickness 1-3/4"

More Info

For fire rated doors with a very high traffic rate or that are lead lined, this Rixson ML19 intermediate pivot is used to help maintain the alignment of the bottom and top pivots. It is offset-hung with a 3/4" offset. Usually supplied for doors that are 1-3/4" thick but can also be ordered via special order for door thicknesses of 2', 2-1/4", 2-1/2", 2-3/4" and 3".
