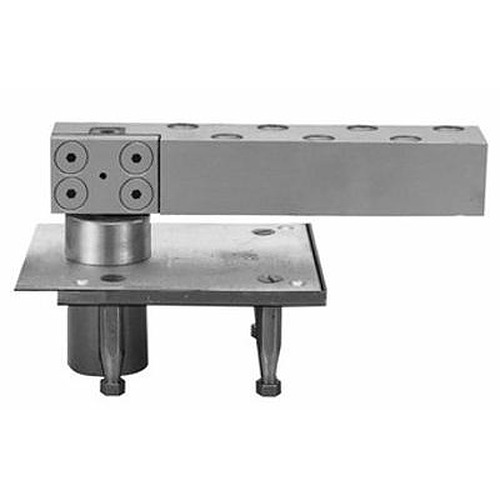

Rixson H117-3/4-587

Center Hung Heavy Duty Pivot Set

Quick Product Details

  • Pivot Set
  • Center-Hung
  • Heavy Duty
  • For interior and exterior doors
Price: $1,176.00 /each

SKU: H117-3/4-587

Choose Options Below

This Rixson H117-3/4-587 center-hung heavy duty pivot set includes H340 top pivot. Standard set is equipped with side-load arm for 1-3/4" thick door. Bottom pivot is mortised into floor. For use on interior or exterior doors weighing up to 1000 lbs.

  • In Stock!
  • Order in the next 8 hours 35 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,176.00

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Overview


Suited for:
  • Interior and exterior doors up to 1000 lbs.

Quality:
  • 2 year limited warranty

Special Orders Available:
  • All standard architectural finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

  • Includes standard top pivot H340
  • Side-load arm for 1-3/4” thick doors
  • Side-load arm allows pivot point to be moved away from edge of door
  • Bottom pivot is mortised into the floor
  • Pivot set is substantially concealed when the door is closed
  • Extra-heavy duty bearings
  • All center-hung pivot sets are double acting unless stopped by some means on the door frame
  • Door must have radius on pivot edge
  • Pivot point is centered in the thickness of the door
  • Doors do not return to center
  • Not allowed for use on fire-labeled doors and frames
  • Includes wood and machine screws
Style Pivot Set
Grade Heavy duty
Application Center-hung
Door Handing Non-handed
Door Weight Up to 1000 lbs.
Door Size Up to 4'0" X 8'6"
Door Thickness 1-3/4"

More Info


​The Rixson H117-3/4-587 is for heavy doors, that weigh up to one-thousand pounds, in center-hung applications. Package includes the H340 top pivot and side load arm for 1-3/4 inch thick doors which allows the pivot point to be moved away from the edge of the door. The H117 has extra-heavy duty bearings to be able to carry the great weight of heavier doors. All pivot sets that are center-hung will be double acting unless they are blocked by a stop on the door frame.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
