Rixson H28-90S-587-618

Special Order Center Heavy Duty Hung Complete Floor Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: H28-90S-587-618

Choose Options Below

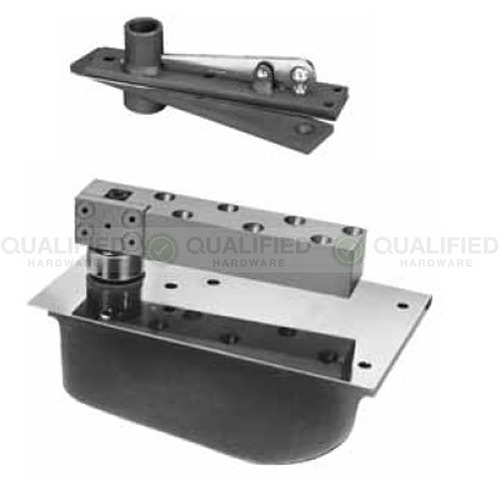

The Rixson H28S-587 complete heavy duty floor closer for interior or exterior doors provides special side load arm for 1-3/4" thick doors. A closer package includes everything that you need for a new installation.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order non stock item with 12 week lead time.
  • Complete Heavy Duty floor closer.
  • Includes the H340 top pivot, floor closer body H28, cement case 253001, side load arm for 1-3/4" doors 262587 and floor plate 284720 and spindle shoulder collar-259500.
  • Polished Nickel finish-618
  • Side load arm for 1/34" thick doors.
  • Selective hold open (SHO) at 90 degrees.
  • Single acting, handed.
  • Doors weight to 1000 lbs.
  • Sizes up to 4'0" x 8'6".

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Thrust bearing for greater load capacity.
  • Built-in positive dead stop at 90° prevents door from swinging beyond the opening degree.
  • Separate and independent valves for closing speed, latch speed and backcheck.
  • Not allowed for fire rated doors.
