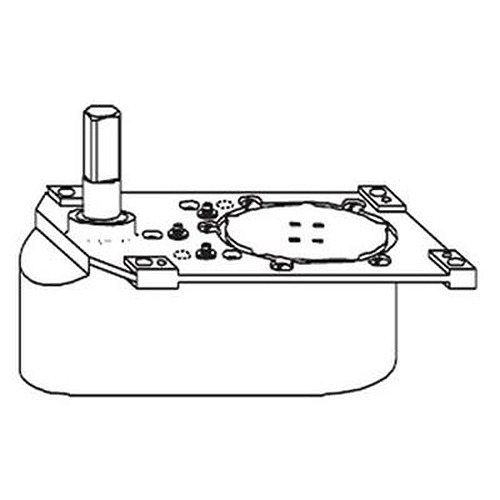

Rixson H28N-LAP

Special Order Heavy Duty Center Hung Floor Closer Body

Quick Product Details

  • Floor Closer Body
  • For commercial exterior and interior extra-heavy doors
  • Center-Hung
  • Non Hold Open
  • Single Acting
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: H28N-LAP

Choose Options Below

This Rixson H28N Non Hold Open center-hung floor closer body is for extra heavy doors such as thick, bronze or stone clad doors in commercial interiors and exteriors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide

Overview

Special order non stock item with 4 week lead time.

  • Extra heavy doors (thick, bronze, stone clad) in commercial exteriors and interiors




Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Opening Degrees: info icon

    • 90 Degrees
    • 105 Degrees

Product at A Glance

  • Built-in positive dead stop
  • Separate and independent valves for closing-speed, latch-speed and backcheck adjustment
  • Additional thrust bearing for greater load capacity
  • Uses cast iron cement case
  • Includes 41204 thrust bearing package
  • Non hold open
  • Not allowed for use with fire rated doors
  • Frame or applied stop required such as #60131
Door Handing Handed
Function Single Acting
Door Weight Up to 1000 lb
Door Size Up to 4'0 x 8'6"
Style Floor Closer Body
Application Center-hung

More Info



Is your door bronze, stone clad, very thick or simply, extremely heavy? If yes, this closer is made specifically for you. With a maximum weight capacity of one thousand pounds, which is allowed by the additional thrust bearing added to this closer, your door will most likely fit the bill. The H28N is a center-hung, single acting, handed product which can be used on doors measuring a maximum of four feet by eight feet and six inches. Included in this package is a 41204 thrust bearing package. 90 and 105 opening degrees options are available for this closer body.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
