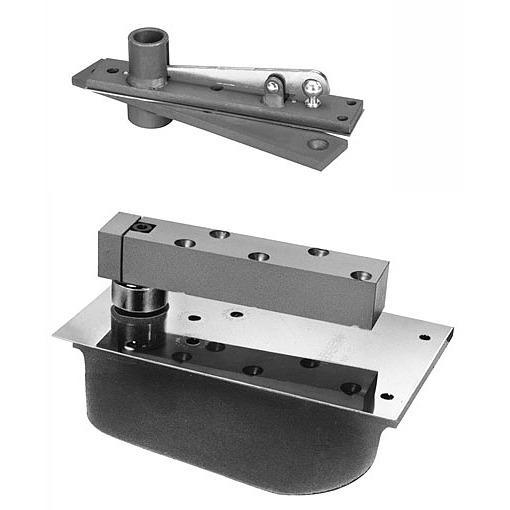

Rixson H28S Complete

Heavy Duty Center Hung Closer

Quick Product Details

  • Floor Closer
  • For commercial exterior and interior extra-heavy doors
  • Center Hung
  • Heavy Duty
  • Single Acting
Starting price: $2,505.00 /each

SKU: H28S Complete can include all components

Choose Options Below

This Rixson H28S- Complete heavy duty center-hung floor kit is a door closer for extra heavy doors with a minimum door thickness of 2 inches, and high door traffic. The H28 works well on interior and exterior doors that are thick, bronze or stone clad.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $2,505.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Heavy Duty Center Hung Floor Closer Body with Selective Hold Open image
Buy Separately

2) Cement Case:

Cast Iron Cement Case image
Buy Separately

3) Floor Plate:

28/328/428 Floor Plate image
Buy Separately

4) Top Pivot:

Heavy Duty Center Hung Top Pivot image
Buy Separately

5) Top pivot:

Earthquake Tolerant Heavy Duty Top Pivot image
Buy Separately

6) 262022:

End Load Arm Package image
Buy Separately

7) Side Load Arm:

Side Load Arm Package image
Buy Separately

Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
606 - Satin Brass (US4) 606 - Satin Brass (US4)
612 - Satin Bronze (US10) 612 - Satin Bronze (US10)
625 - Bright Chrome (polished) (US26) 625 - Bright Chrome (polished) (US26)
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)
613-Oil Rubbed Bronze (613) 613-Oil Rubbed Bronze (613)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door


Choose Hold Open:

SHO (Selective Hold-Open)

Help Me Decide


Selective hold-open

Door hold-open can be controlled via a screw on top of the closer to be automatic or non hold-open

Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide


Suited for:
  • Extra heavy doors in commercial exteriors and interiors

  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Selective Hold Open-closer can be set to hold open or non-hold open. This is done via a screw control on the top of the closer.
  • Built-in positive dead stop to control how far the door will swing.
  • Closing-speed, latch-speed and backcheck are adjusted through separate and independent valves.
  • Doors that are fire rated may not use this closer.
  • Requires use of a frame or applied stop,not included, #60131.
  • Ideal for use with thick, bronze and stone clad doors.
  • Additional thrust bearing for greater load capacity.
Style Floor Closer
Application Center-hung
Door Handing Handed
Function Single Acting
Door Weight Up to 1000 lbs
Door Size Up to 4'0 x 8'6"
Door Thickness 2" minimum

More Info

For thick, stone clad or bronze doors that are extra heavy the Rixson H28 center-hung floor closer is the perfect choice. This closer can  hold doors that weigh up to one thousand pounds and it includes additional thrust bearing for greater load capacity. A minimum door thickness of two inches is necessary to use this closer. The H28 can tolerate very high traffic such as in the entrances of popular department stores and large schools. It is single-acting and handed, and can be ordered with one of six pretty finishes. Supplied with selective hold-open which can be adjusted manually to keep the door open until closed manually or no hold-open which means the door closes automatically as soon as it is released.
