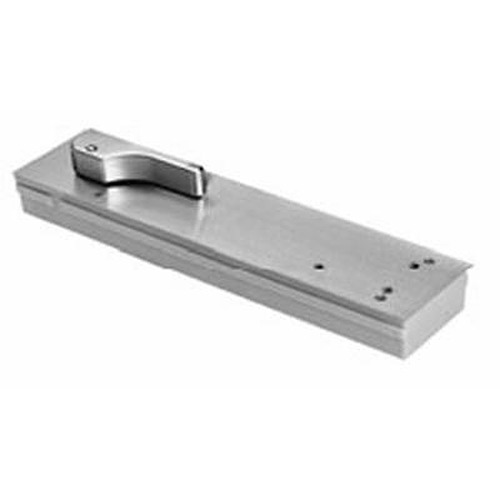

Rixson HM5103-NBC-619

Special Order Complete 3/4" Offset Shallow Depth Floor Closer

Quick Product Details

  • Floor Closer
  • For commercial interior doors
  • Offset Hung
  • Standard Duty
  • Single Acting
  • Shallow
  • Door Width-36"
  • Satin Nickel Finish
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: HM5103-NBC-619

Choose Options Below

This Rixson HM510X-Complete offset-hung floor closer is specifically designed for hollow metal interior doors with low/medium traffic, that have a shallow slab construction for installation of the closer.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order non stock item with 4 week lead time
Suited for:

  • Designed for hollow metal doors and frames with standard weight 4-1/2" hinge preparation.
  • Satin Nickel finish-619
  • Interior, low/medium traffic, hollow, metal doors that have a thin slab construction.
  • Complete kit includes 5103NBC closer body, 254545PK 4-1/2 hinges,222050 bottom arm,4000501 floor plate and 4000301 cement case.
    offset.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

Style Floor Closer
Application Offset-Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 250 lb
Door Width Interior Hollow metal 36"
Door Thickness 1-3/4"

More Info


This closer is constructed specifically for hollow, metal doors that are in commercial interiors where there is low to medium door traffic and a shallow slab construction. The HM510X has shallow depth, and it can be used on doors weighing up to two hundred and fifty pounds. As part of the complete package for this closer, a hinge set is included. The 3/4” offset ball-bearing hinge set (254545) has a special 3/4” offset to match the floor closer pivot point, includes 4-1/2” by 4-1/2” ball-bearing hinges and is reversible for left or right handed applications. We highly recommend the use of an intermediate pivot when using this closer. if your door does not exceed ninety inches in height, one intermediate pivot shall be used. However, if your door is taller than ninety inches, with every additional thirty inches another intermediate pivot shall be added.
