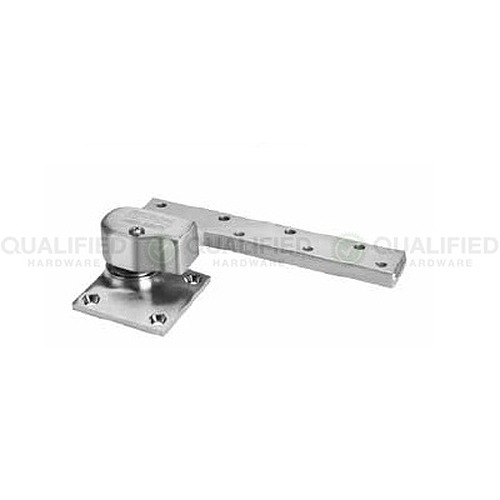

Rixson L147-LTP-619

Special Order Offset Bottom Pivot for Lead lined Doors

Quick Product Details

  • 3/4 Offset Hung
  • Heavy Duty
  • For exterior and interior doors
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L147-LTP-619

Choose Options Below

This Rixson L147LTP 3/4" offset pivot bottom is for exterior or Interior doors, Lead-Lined/Heavy/High Traffic doors weighing up to 800 pounds. The pivot allows the door the ability to swing 180 degrees as long as the trim permits. No top pivot included.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Special order non stock item with 4 week lead time.

Special order non stock time with 4 week lead time.

  • Bottom pivot only, no top pivot.
  • Satin Nickel finish-619
  • Exterior and interior doors weighing up to 800 pounds.
  • Doors with lead lining under the skin should also use this product.


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Bottom pivot only. No top pivot
  • Bottom pivot gets mounted directly to floor
  • Door edges must be beveled 1/8” in 2”
  • Door will swing 180 degrees (trim permitting)
  • Includes wood and machine screws
Grade Heavy Duty
Application 3/"4 Offset-Hung
Door Handing Handed
Door Weight Up to 800 lbs.
Door Width Doors up to 4'0"

More Info




Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
