Rixson L27-Complete for 2-1/2" Doors

Special Order 3/4" Offset Closer for Lead Lined Doors up to 2-1/2" Thick

Quick Product Details

  • Floor Closer
  • For commercial lead-lined exterior and interior doors
  • Offset Hung
  • Heavy Duty
  • Single Acting
  • Selective Hold Open- closer can be set to hold open or non-hold open.
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L27-Complete for 2-1/2" Doors

Choose Options Below

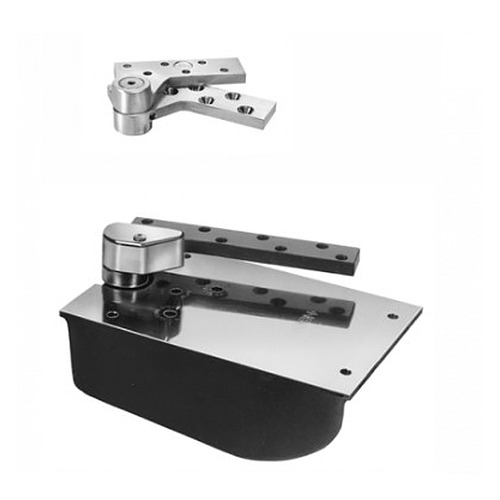

This Rixson L27S-complete 3/4" offset-hung floor closer is for lead-lined or extra heavy exterior and interior doors with high door traffic.With The heavy duty bottom arm, top pivot and optional intermediate pivot are designed to straddle lead lining in the door. Specially made for doors up to 2-1/2" thick.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

606 - Satin Brass (US4) 606 - Satin Brass (US4)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Hold Open:

SHO (Selective Hold-Open)

Help Me Decide



Selective hold-open

Door hold-open can be controlled via a screw on top of the closer to be automatic or non hold-open

Choose Opening Degrees:

90 Degrees 90 Degrees

Overview


Suited for:
  • Lead lined exterior and interior heavy doors with high door traffic

Quality:
  • 10 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Hold Open: info icon

    • SHO (Selective Hold-Open)
  • Opening Degrees:

    • 90 Degrees

Product at A Glance

  • Selective Hold Open-these closers can be set to hold open or non-hold open. This is done via a screw control on the top of the closer
    done via a screw control on the top of the closer.
  • A positive dead stop is built-into this product.
  • Valves that are separate and independent are included for the adjustment of closing-speed, latch-speed and backcheck.
  • This closer allows for vertical adjustment of door.
  • Includes thrust bearing for a greater load capacity.
  • The use of intermediate pivots is highly recommended with this product.
  • For doors up to 90” high use one intermediate pivot. Each additional 30” warrants the use of one more intermediate pivot.
Style Floor closer
Application Offset-Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 1500 lbs
Door Width Up to 4'0
Door Thickness Up to 2-1/2" Thick

More Info


Lead-lined doors are made to help scatter gamma and X-rays and are therefore used often in medical facilities, where the use of these rays are necessary, to keep the radiation from spreading and causing unnecessary damage.Doors that are lead-lined are usually extremely heavy and the Rixson L27 3/4” offset is designed specifically for those. This closer can carry doors that weigh up to one thousand, five hundred pounds. The heavy-duty bottom arm and top pivot included with the purchase of the complete L27 closer are constructed with spaced screw holes to straddle the lead-lining in the doors. Door is set with the ability to swing up to ninety degrees and has a built in selective hold-open which can be manually adjusted to have the hold-open functioning or not.
