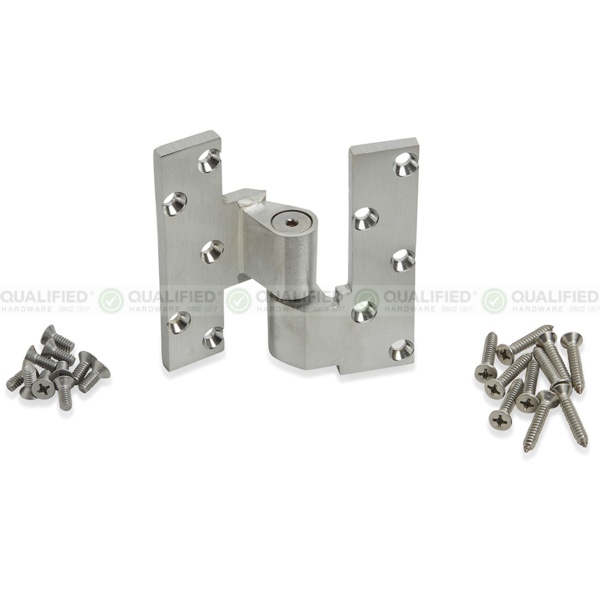

Rixson ML19-606

Special Order Offset Intermediate Pivot for Lead Lined Doors

Quick Product Details

  • Intermediate Pivot
  • Offset Hung
  • Full Mortise
  • Heavy Duty
  • For lead-lined exterior and interior doors
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ML19-606

Choose Options Below

This ML19 offset intermediate pivot is designed for heavy, lead-lined doors or high traffic doors. Finished in 606 - Satin Brass

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

606 - Satin Brass (US4) 606 - Satin Brass (US4)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Non-Stock Special Order with 4-6 week lead time

Suited for:

  • Lead-lined heavy doors with high door traffic


Quality:

  • 2 year limited warranty

Special Orders Available:
  • Available for door thicknesses of 2”, 2-1/4”, 2-1/2” and 3”
  • More unlisted finishes available
Contact us directly to place your special order.


Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Screw holes spaced to straddle lead lining
  • Full mortise
  • Load-bearing
  • Maintains door alignment
  • Aids in the installation of pivots and floor closers
  • Made with non-ferrous base metal
  • Includes  wood and machine screws
Style Intermediate Pivot
Grade Heavy Duty
Application Offset-Hung
Offset 3/4"
Door Handing Handed
Door Thickness 1-3/4"
Finish Satin Brass (606)

More Info


For doors with a very high traffic rate or that are lead lined, this Rixson ML19 intermediate pivot is used to help maintain the alignment of the bottom and top pivots. It is offset-hung with a 3/4” offset. Usually supplied for doors that are 1-3/4” thick but can also be ordered via special order for door thicknesses of 2’, 2-1/4”, 2-1/2”, 2-3/4” and 3”.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
