Rixson PH-SC-H40-90A-612

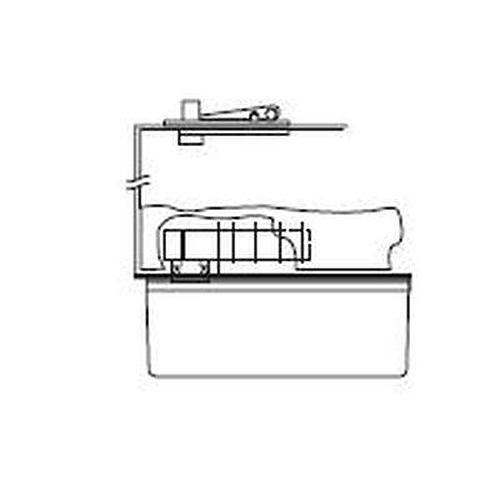

Special Order Complete Double Acting Center Hung Floor Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: PH-SC-H40-90A-612

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish..

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


  • Special Order complete floor closer with PH option, sealed cement case, floor plate, end load center hung arm package for 2" thick doors. H340 top pivot and 90 degree automatic hold open
  • Double Acting
  • Non-handed
  • For interior doors
  • For door weights up to 1000 lbs.
  • Door sizes up to 4' 0" x 8' 6"
  • 612 finish -satin bronze
  • This special order item has a 3-4 week lead time.

More Info

  • For thick, heavy doors
  • Thrust bearing for greater load capacity
  • Adjustable closing speed valves for each direction of door swing
  • Mechanism returns door to center
  • Maximum door opening 103°
  • Overhead stop recommended for exterior or high traffic doors
  • Uses steel cement case
  • Body includes 41204 thrust bearing package
  • The arm used on this closer does not allow door centering adjustment. Not recommended for pairs of doors
  • Not allowed for fire rated doors
  • For single acting applications - #60131 applied stop required
